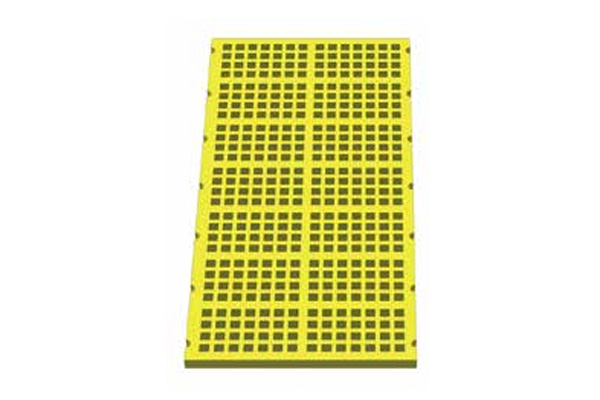

Product Overview

- Modular polyurethane screen plates have a service life that is 3-5 times longer than ordinary metal screen plates and approximately 5 times longer than rubber screen plates.

- They are suitable for various models of vibrating screens, and customization is available based on different screen machine dimensions and screening requirements.

- They are available in multiple colors and have an aesthetically pleasing design. There are multiple mounting options for easy installation and maintenance.

Key Features

Superior Wear Resistance

3–5x more wear-resistant than rubber; outperforms metal in with standing prolonged impact/abrasion.

Elasticity & Self-Cleaning

High elasticity prevents clogging via secondary vibration—ideal for wet, sticky materials like coal slurry.

Hydrolysis & Corrosion Resistance

Stable in water, weak acids/alkalis; no rust, swell-ing, or hydrolysis ensures durability in humid conditions.

Lightweight & Easy Handling

Lower density than steel simpli-fies installation/transport and reduces machine load.

Aging Resistance

Resists UV, temperature changes, and brittleness over time.

High Design Flexibility

Hardness, elasticity, open-area ratio, aperture shape, and surface properties can becustomizedviaformulationandmanufacturingadjustments.Thisallowsoptimi-zation for varying material properties and screening requirements, maximizing efficiency and service life.

Technical Specifications

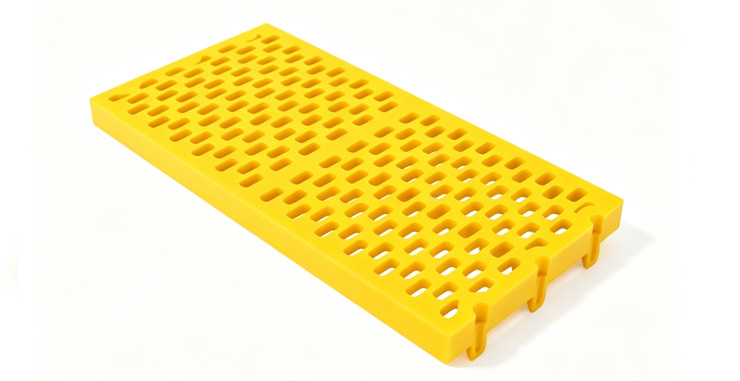

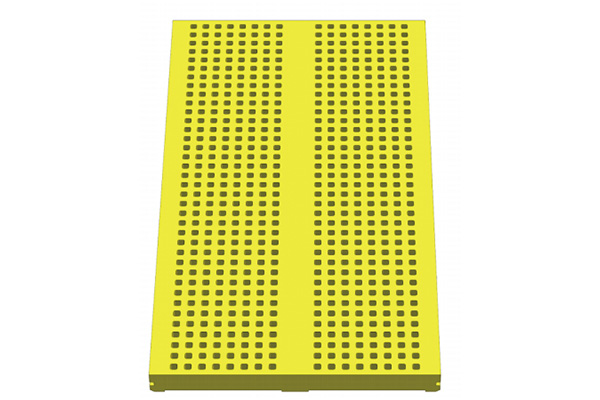

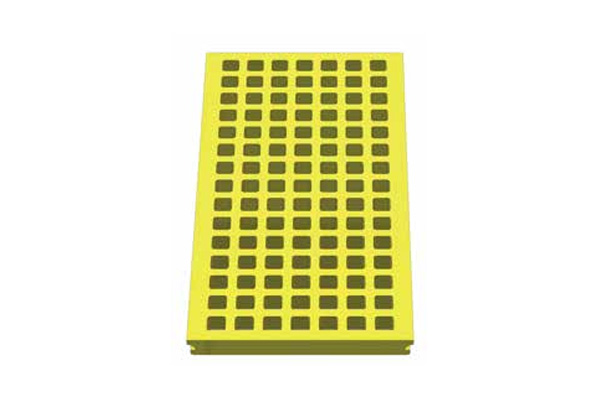

Modular Polyurethane Screen Panels

High‑wear‑resistant modular screen panels for vibrating screen equipment

General Information

Product Name	Modular Polyurethane Screen Panels
Material	High‑wear‑resistant Polyurethane, Shore A 85‑95

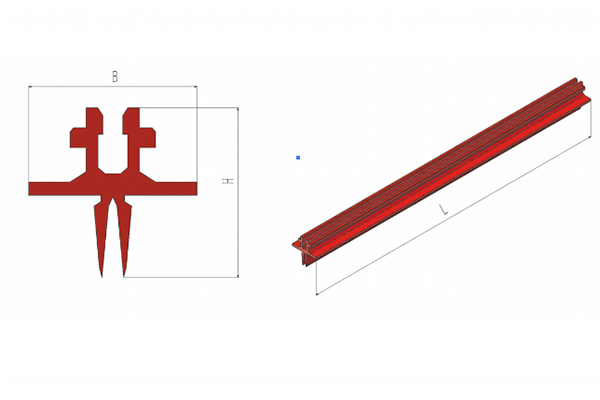

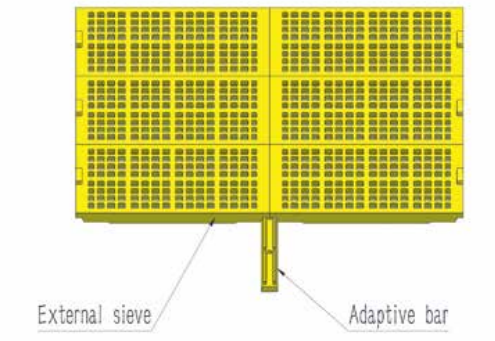

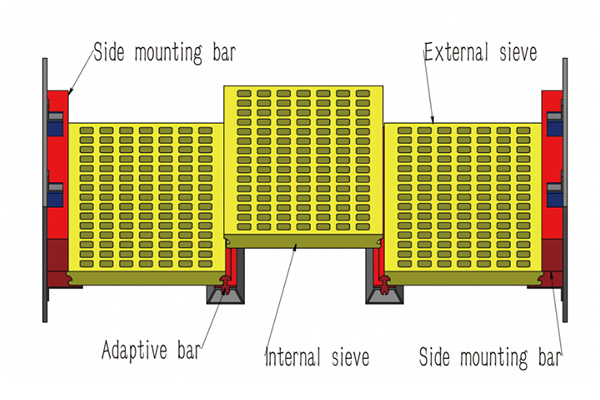

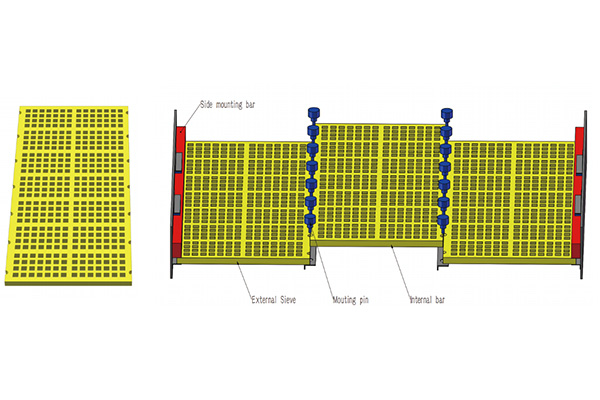

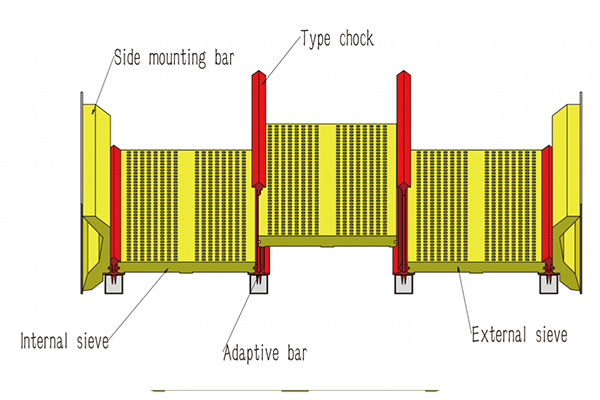

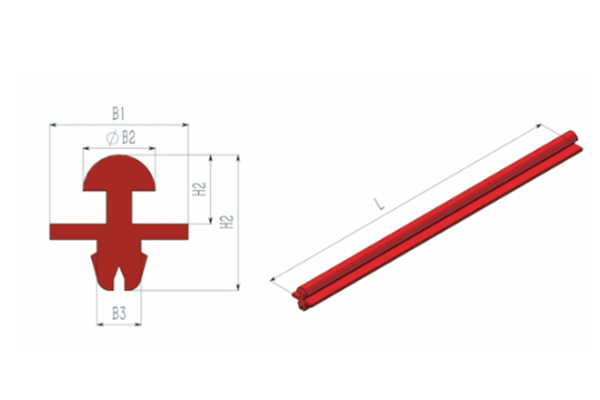

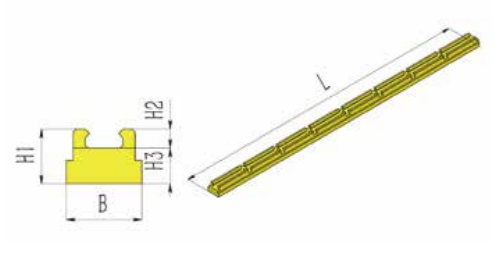

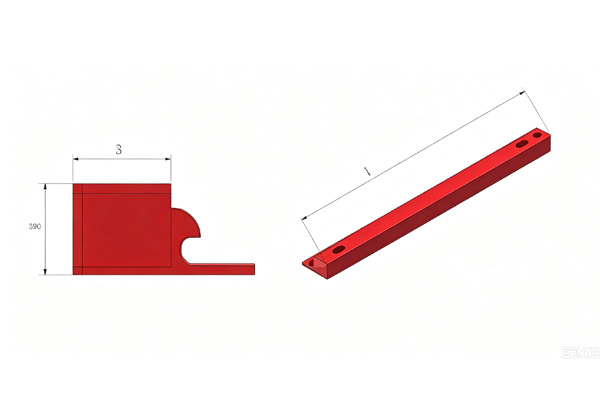

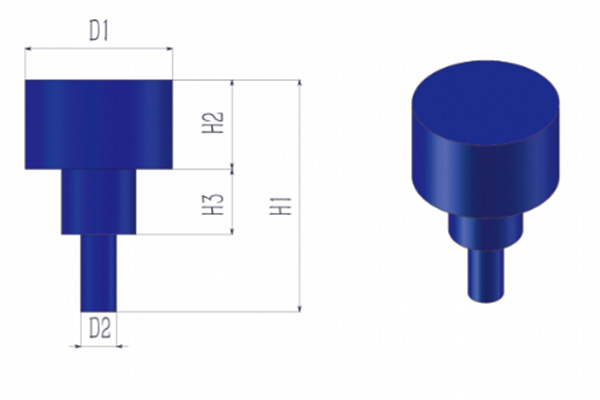

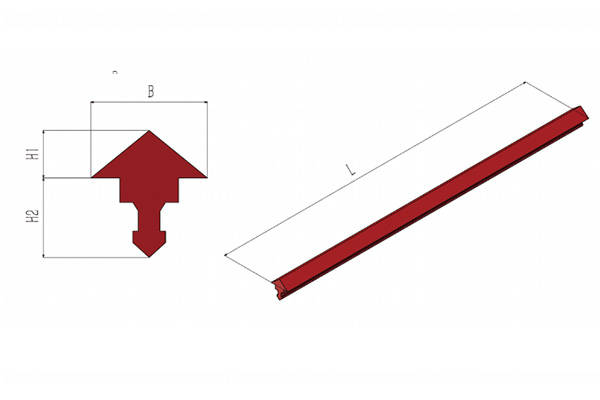

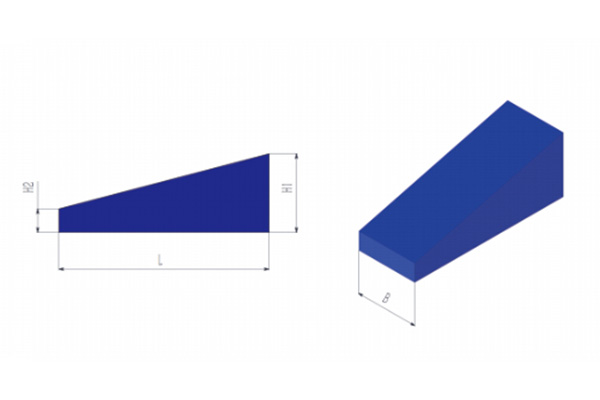

Installation Type	Modular snap‑in / wedge locking system
Key Features	Anti‑blinding, high abrasion resistance, low noise, quick replacement
Typical Application	Gold ore, phosphate ore, crushed aggregate, coal washing, mineral processing screening

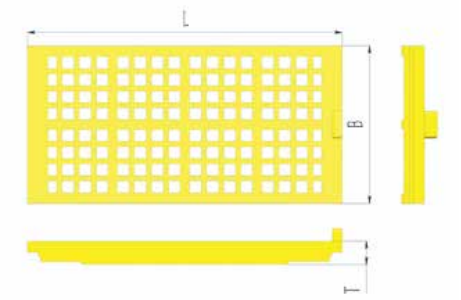

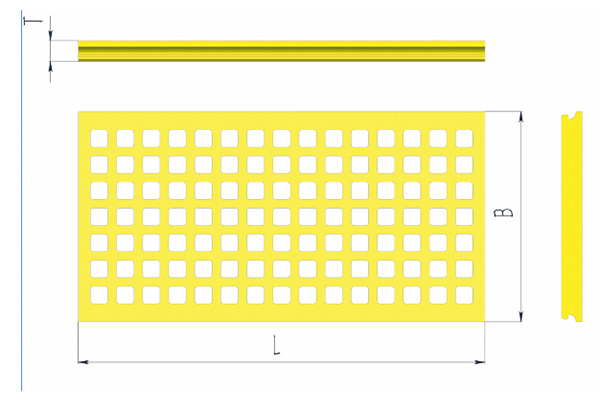

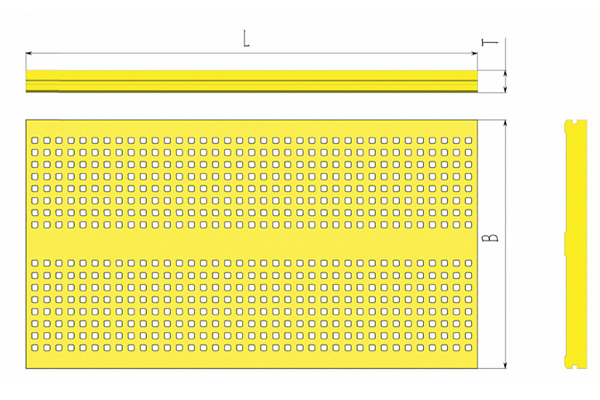

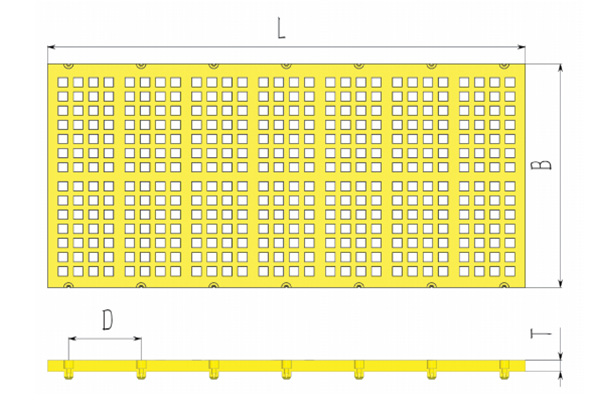

Standard Dimensions

Custom sizes acceptable

Length (mm)	Width (mm)	Thickness (mm)
305	305	30 / 40 / 50
305	610	30 / 40 / 50
610	610	40 / 50 / 60

Aperture Options

Square / rectangular slot openings available

Aperture Size	Recommended Application
3×3 ~ 6×6 mm	Fine material screening
8×8 ~ 12×12 mm	Medium‑grade ore separation
15×15 ~ 25×25 mm	Coarse crushed material
Rectangular slot	Wet & sticky material, anti‑blinding performance

Technical Performance

Performance Item	Parameter Value
Hardness	Shore‑A 85‑95
Operating Temperature	-30℃ ~ +80℃
Bending Strength	≥25 MPa
Elongation at Break	≥350%
Unit Weight	12‑22 kg/㎡ (varies with thickness & aperture)

Ordering Notes

No.	Order Reminder
1	Confirm overall dimension: Length × Width × Thickness
2	Confirm aperture size and hole shape (square / rectangular slot)
3	Confirm installation locking structure (snap‑in or wedge type)
4	Provide working condition: ore type, maximum feed particle size
