Product Overview

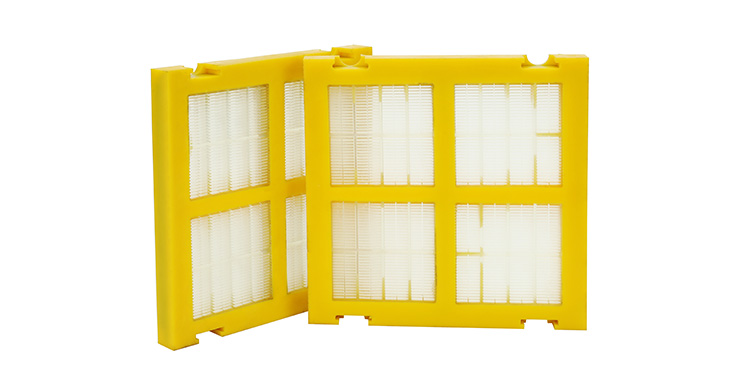

Made primarily of polyurethane elastomer (PU), with some internal steel reinforcement, and gaps ranging from 0.1mm to 3mm, this modular screen is specifically designed for use with vibrating dewatering screens and high-frequency screens. Standard modular sizes are 305×305mm and 305×610mm (industry-standard), and custom-made whole panels are also available. It is a modular screen surface used for wet material dewatering, desliming, fine sand recovery, and tailings dry discharge. The most commonly used feature is the wedge-shaped slotted hole, which is the mainstream screen plate in coal washing, sand and gravel, and mining.

Key Features

Superior Wear Resistance

3–5x more wear-resistant than rubber; outperforms metal in with standing prolonged impact/abrasion.

Elasticity & Self-Cleaning

High elasticity prevents clogging via secondary vibration—ideal for wet, sticky materials like coal slurry.

Hydrolysis & Corrosion Resistance

Stable in water, weak acids/alkalis; no rust, swell-ing, or hydrolysis ensures durability in humid conditions.

Lightweight & Easy Handling

Lower density than steel simpli-fies installation/transport and reduces machine load.

Aging Resistance

Resists UV, temperature changes, and brittleness over time.

High Design Flexibility

Hardness, elasticity, open-area ratio, aperture shape, and surface properties can becustomizedviaformulationandmanufacturingadjustments.Thisallowsoptimi-zation for varying material properties and screening requirements, maximizing efficiency and service life.

Technical Specifications

Parameter Category	Parameter Item	Specification	Unit	Remarks
Basic Info	Product Name	Polyurethane Dewatering Screen Panel	—	For screening, dewatering and medium removal operations
	Material	Polyurethane elastomer (with optional silicon carbide wear‑resistant particles)	—	3‑5x wear resistance of steel screens, 5x+ of rubber screens
	Structure	Modular panel / Skeleton type (with steel skeleton)	—	Steel skeleton enhances load‑bearing capacity
	Standard Color	Yellow (customizable: red/orange/black/green)	—	‑
Material Properties	Hardness	45‑95 (typically 80‑90)	Shore A	Adjustable to working conditions
	Tensile Strength	≥25	MPa	‑
	Elongation at Break	≥300	%	Good elasticity and impact resistance
	Resilience	≥25	%	‑
	Abrasion Loss	≤60‑80	mg	Per ASTM D4060, 1000 cycles
	Wear Resistance	3‑5x of steel screens	times	Service life 2‑3x that of metal screens
Environmental Resistance	Acid/Alkali Resistance	pH 2‑12	—	Acid, alkali and corrosion resistant
	Operating Temperature	‑30 ~ 80	℃	‑
	Salt Spray Test	≥1000	hours	No obvious corrosion
	UV Aging	Hardness change ≤5% in 12 months	%	‑
Dimensions	Standard Modular Size	305×305 / 610×305 / 305×610	mm	Custom sizes available
	Panel Thickness	20‑70 (typically 10‑35)	mm	Dewatering panels commonly 20‑70mm; thickened for heavy duty
	Dimensional Tolerance	L±5 / W±3 / T±0.5	mm	Ensures fit with screen frame; leakage<2%
	Assembly Width	560 (standard screen assembly)	mm	Matches screen width of medium/large dewatering screens
Aperture	Aperture Size	0.075‑5 (fine slot 0.1×12‑2.5×12)	mm	Fine slots common for dewatering; larger apertures customizable
	Aperture Type	Square / Rectangular / Round / Slot	—	Selected by material
	Aperture Tolerance	≤±0.1	mm	High precision screening
	Open Area	45‑55	%	Metal screens only 30‑40%; higher throughput
	Blinding Rate	≤8	%	Anti‑blocking reverse taper holes
	Hole Spacing	20‑30 (evenly distributed)	mm	‑
Installation	Mounting Method	Side bolt fixing / Clip‑in	—	‑
	Bolt Hole Diameter	16	mm	‑
	Bolt Hole Spacing	150	mm	‑
	Edge Flange Width	20	mm	Enhances load‑bearing
	Installation Time per Panel	≤30	minutes	No displacement under high‑frequency vibration
Performance	Service Life	1500‑2000	hours	About 2‑3x that of metal screens
	Noise Reduction	Elastic material absorbs vibration and impact	—	Effectively reduces noise
	Self‑Cleaning	Anti‑blocking self‑cleaning	—	Reduces fine particle wedging, high screening efficiency
	Lightweight	Density approx. 1.1‑1.3	g/cm³	Easy installation, maintenance and replacement
Application	Industries	Mining / Coal washing / Metallurgy / Sand & gravel / Building materials / Water conservancy / Petroleum	—	Screening, dewatering and medium removal
	Compatible Equipment	2YK2460 / 3YK3070 / TS1848 / XS2050 etc.	—	Dewatering screens of 100‑200 t/h capacity
	Compatible Materials	Coal slime / Iron ore tailings / Manufactured sand / Quartz sand / Kaolin tailings	—	Suitable for high‑clay, high‑hardness materials
	Moisture Content after Dewatering	10‑16	%	Depending on material and aperture
