Product Overview

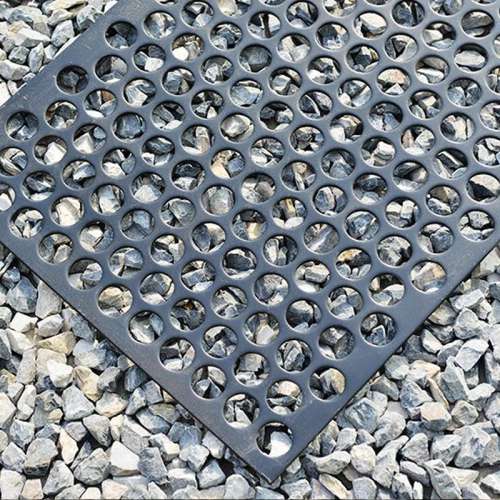

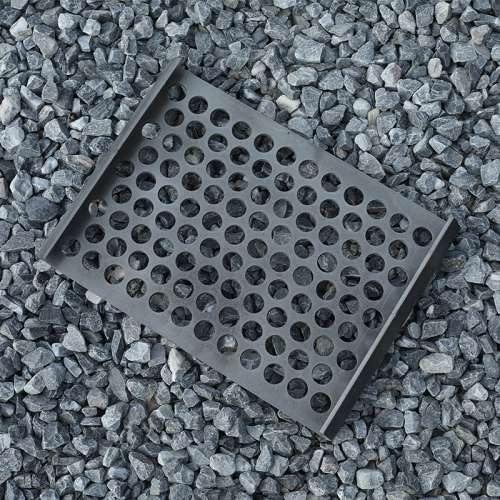

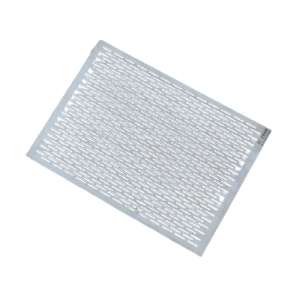

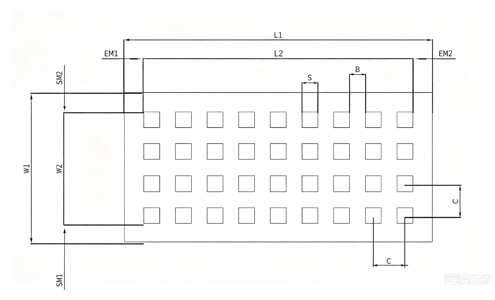

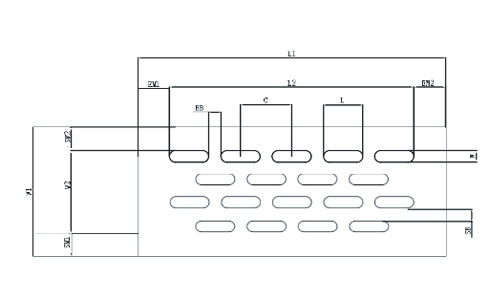

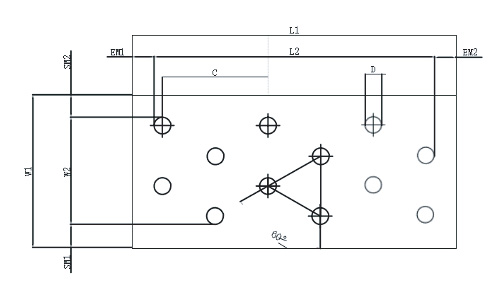

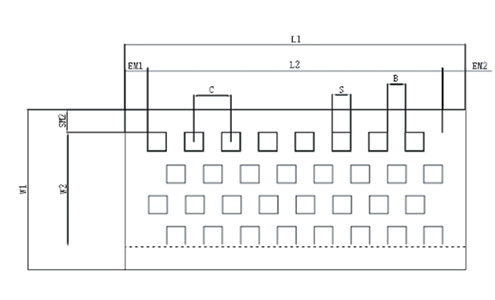

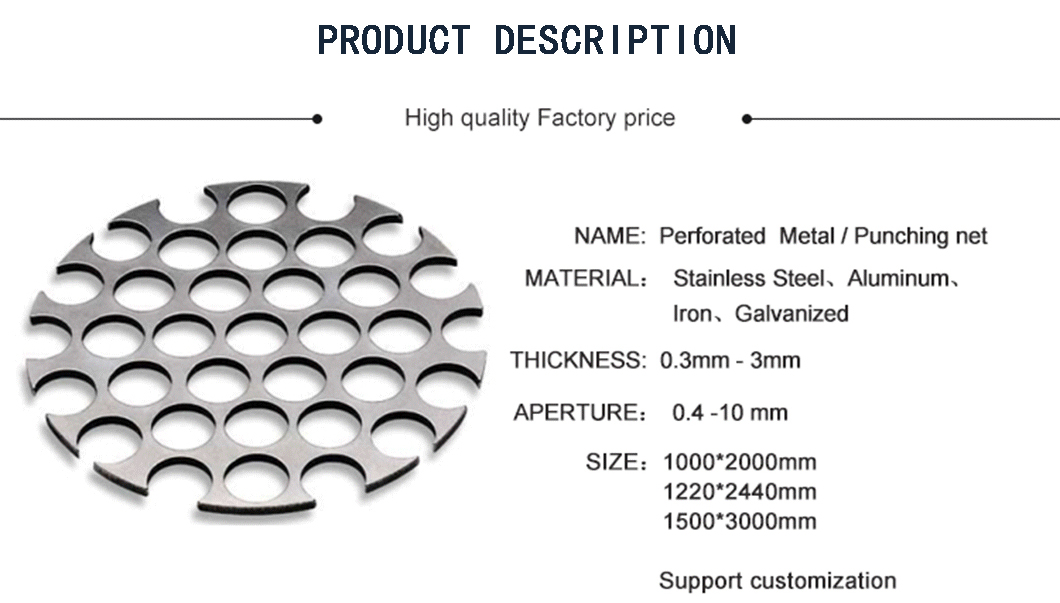

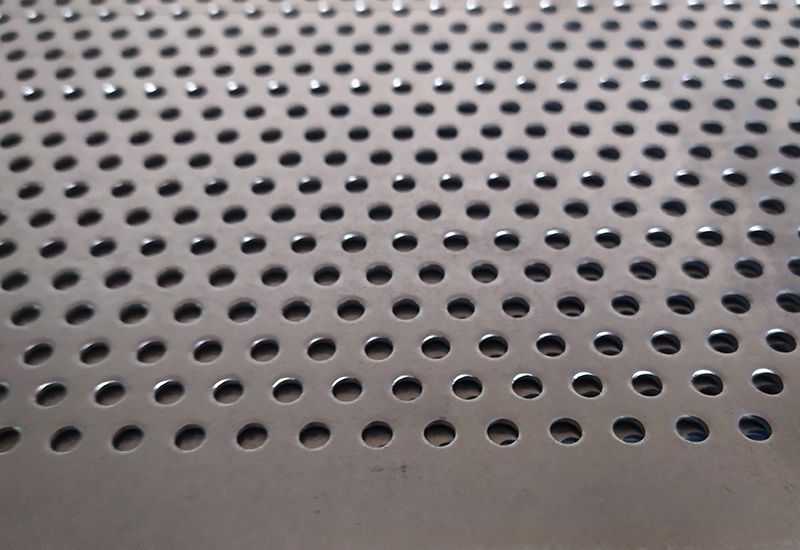

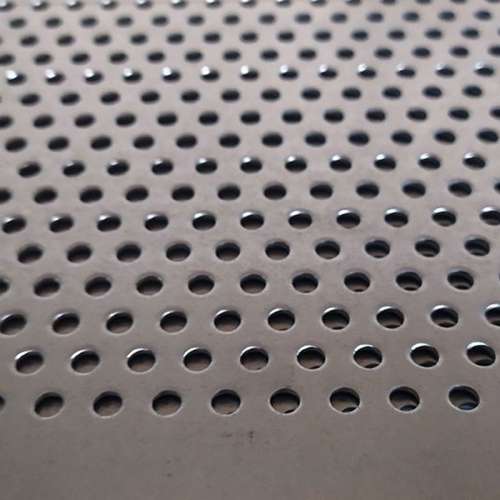

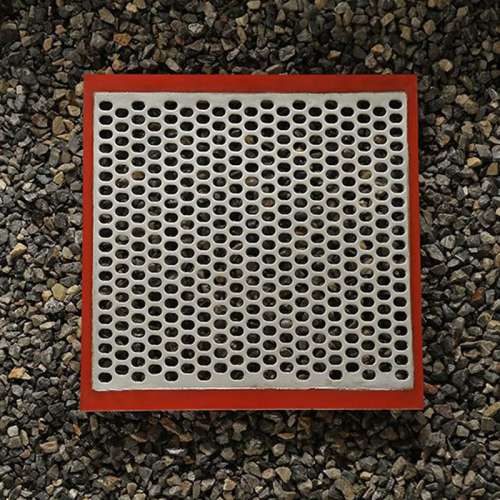

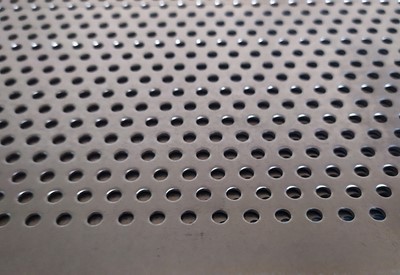

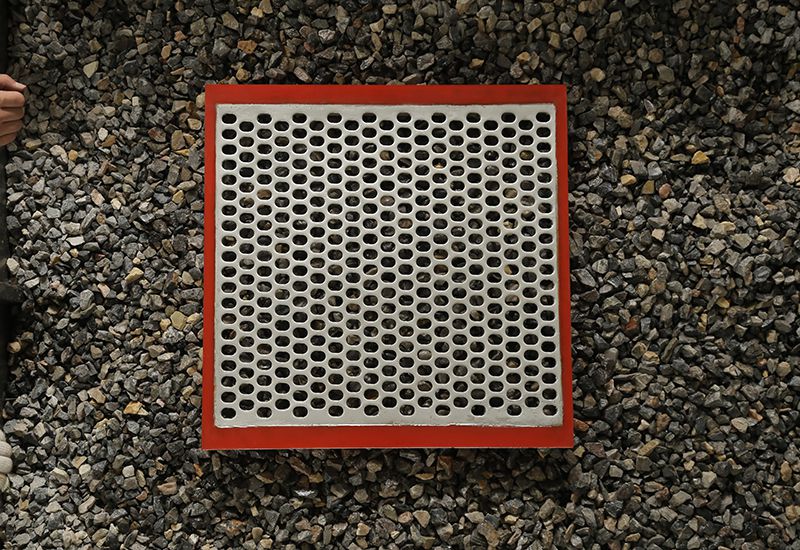

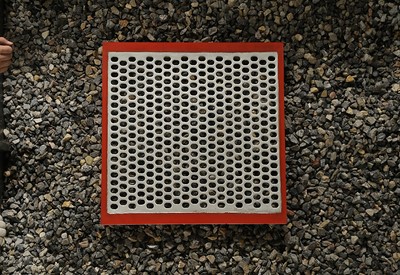

- Mine-use perforated screen plates are high-strength, wear-resistant industrial screening components typically made from metal sheets (such as high-manganese steel, carbon steel, or stainless steel or wear-resistant rubber/polyure-thane through precise punching.

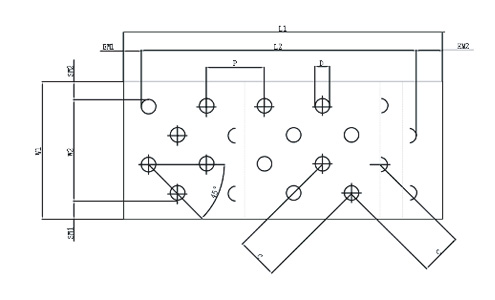

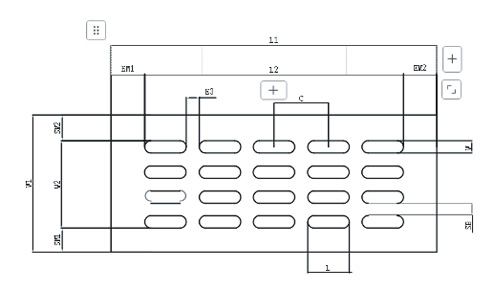

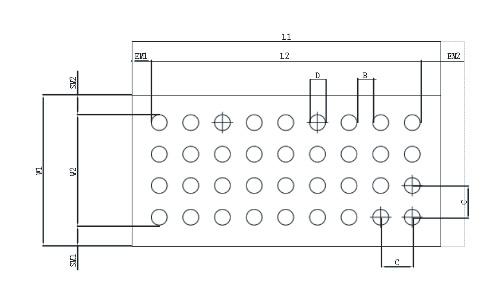

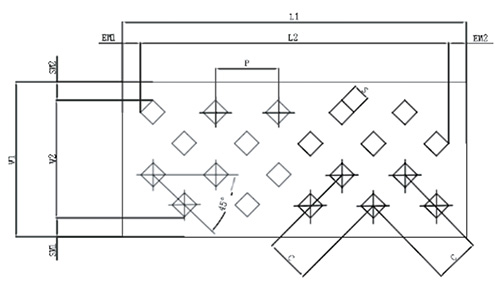

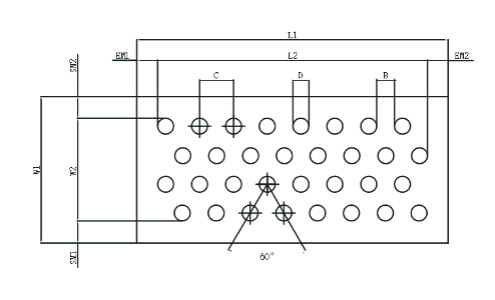

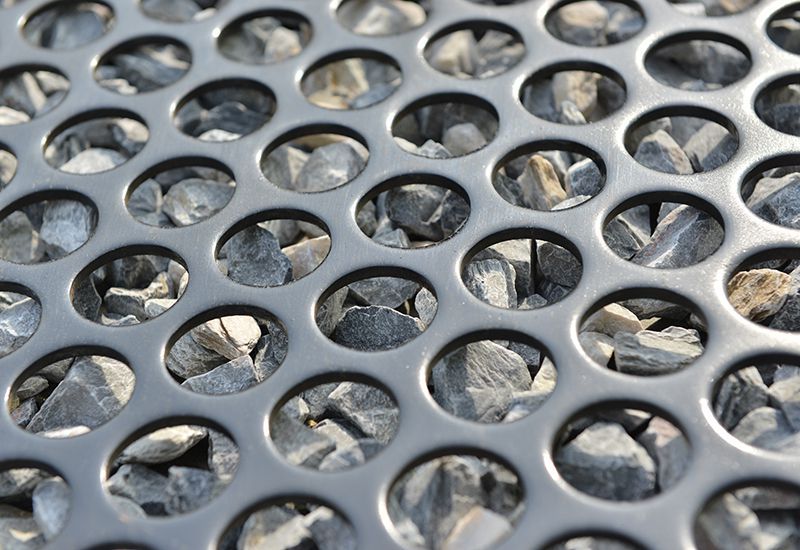

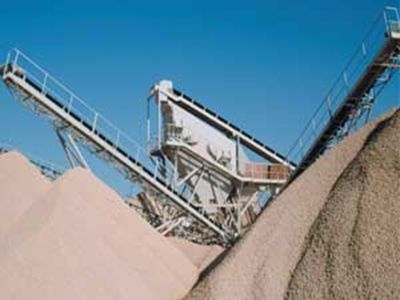

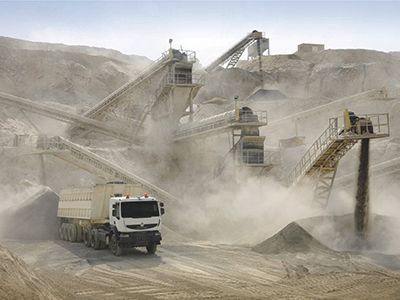

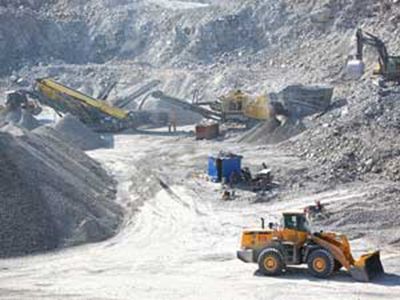

- They are primarly installed on mining screening equipment such as vibrating screens and drum screens to perform tasks such as partice size classification, dewatering, desliming, or de-mediuming of crushed minerals, coal, sandand gravel.

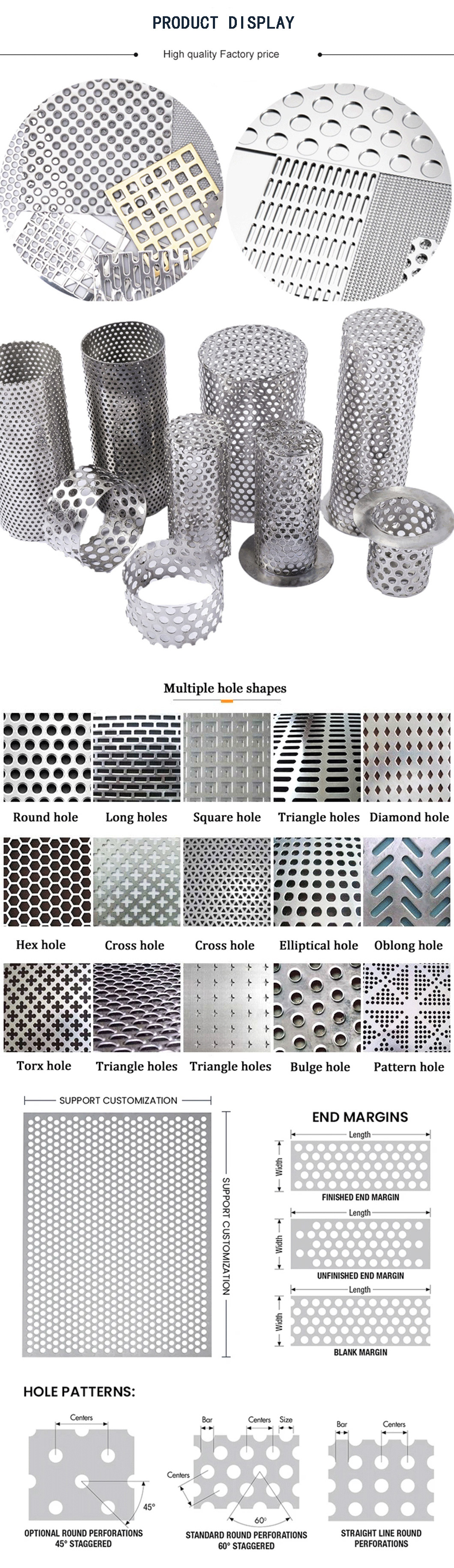

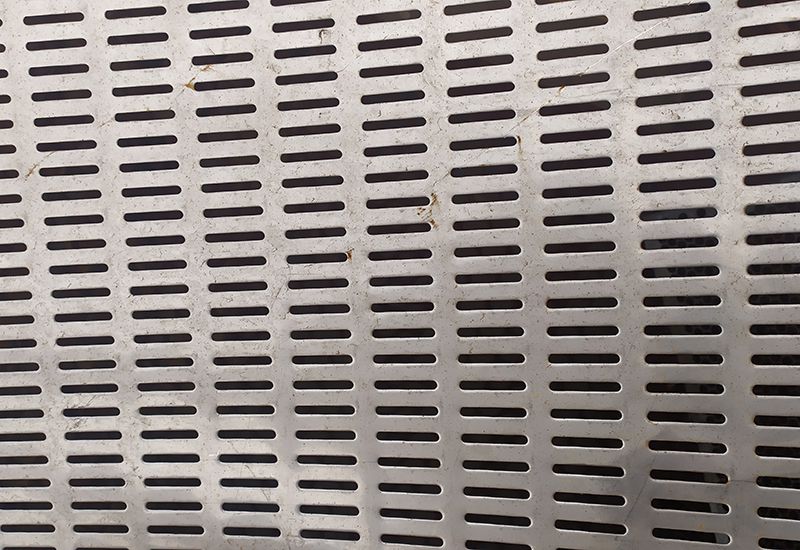

- Customization options indude different materials (carbon steel, stainless steel, rubber, polyurethane, composite) screen hole shapes and sizes, open area ratio, thickness, and overall dimensions to accommodate varying material characteristics (particle size. moisture content, hardness. abrasveness) and screening process requirements
Key Features
Technical Specifications
| Hole Diameter | Pitch | Open Area | Plate Thickness |
|---|---|---|---|
| 0.5 | 1.25 | 14.5 | 0.5 |
| 0.8 | 1.6 | 22.5 | 0.5 |
| 0.8 | 2 | 14.5 | 0.8 |
| 1 | 2 | 23 | 0.5-1 |
| 1.2 | 2.25 | 14.5 | 1 |
| 1.5 | 3 | 23 | 0.5-1.5 |
| 1.8 | 3 | 33 | 1 |
| 2 | 3.5 | 30 | 0.5-1.5 |
| 2 | 4 | 23 | 2 |
| 2.5 | 4 | 35 | 0.5-1.5 |
| 2.5 | 5 | 23 | 2-2.5 |
| 3 | 5 | 33 | 0.5-2 |
| 3 | 6 | 23 | 3 |
| 3.5 | 5 | 44 | 0.5-1.5 |
| 3.5 | 6 | 31 | 2\3 |
| 4 | 6 | 40 | 0.5-1.5 |
| 4 | 7 | 30 | 2\3\4 |
| 5 | 7 | 46 | 0.5-1.5 |
| 5 | 8 | 35 | 2\3\4\5 |
| 6 | 8.5 | 44 | 0.5-1.5 |
| 6 | 10 | 33 | 2\3\4\5\6 |
| 7 | 10 | 44 | 1\1.5 |
| 7 | 11 | 37 | 2\3\4\5\6 |
| 8 | 11 | 48 | 0.8-1.5 |
| 8 | 12 | 40 | 2\3\4\5\6 |
| 8 | 15 | 26 | 8 |
| 8 | 15 | 45 | 2 |
| 9 | 13 | 45 | 1\1.5 |
| 9 | 14 | 37 | 2\3\4\5\6 |
| 10 | 14 | 46 | 0.8-1.5 |
| 10 | 15 | 40 | 2\3\4\5\6 |
| 10 | 18 | 28 | 8\10 |
| 12 | 16 | 51 | 1-1.5 |
| 12 | 17 | 45 | 2\3\4\5\6 |
| 12 | 20 | 32 | 8\10 |
| 14 | 20 | 44 | 8\10 |
| 15 | 18 | 63 | 1-1.5 |
| 15 | 22 | 42 | 2\3\4\5\6 |
| 15 | 24 | 35 | 8\10 |
| 15 | 24 | 22.5 | 2 |
| 16 | 20 | 58 | 1-1.5-2-3-4-5-6 |
| 16 | 24 | 48 | 8\10 |
| 18 | 22.5 | 56 | 1\1.5 |
| 18 | 25 | 47 | 1.5\2.5 |
| 18 | 27 | 40 | 5-6-8-10 |
| 20 | 25 | 58 | 1\1.5 |
| 20 | 27 | 49 | 2\3\4\5\6 |
| 20 | 30 | 40 | 8\10 |
| 22 | 28 | 56 | 2\3\4\5\6\8\10 |
| 25 | 34 | 49 | 1\1.5\2\4-10 |
| 28 | 35 | 58 | 4\5\6\8\10 |
| 30 | 37 | 60 | 1\1.5\5\3\4\5\6 |
| 30 | 40 | 51 | 8\10 |
| 35 | 46 | 52 | 2\3\4\5\6\8\10 |
| 40 | 50 | 58 | 2\3\4\5\6\8\10 |
| 45 | 60 | 51 | 2\4\5\6\8\10 |
| 50 | 62 | 59 | 2\3\4\5\6\8\10 |
| 60 | 75 | 58 | 4\5\6\8\10 |
| 70 | 84 | 61 | 4\5\6\8\10 |
| 80 | 96 | 62 | 4\5\6\8\10 |
| 90 | 112 | 58 | 4\5\6\8\10 |
| 100 | 124 | 58 | 4\5\6\8\10 |
Common Materials and Properties
Carbon Steel
Characteristics: Perforated screen plates made of carbon steel are the most commonly used. Their main feature is their simple and ordinary production process (direct cold forming).
Stainless Steel
Characteristics: AISI 304 material has excellent mechanical properties and high corrosion resistance.
AISI 316 steel plates are characterized by the presence of molybdenum in their chemical composition. They areresistant to strong acidic reagents.
Wear-Resistant Steel
- Characteristics: Perforated plates made from wear-resistant steel are particularly suitable for high-wear production lines. They feature high hardness, strength, and elasticity.
HB 400-450 steel has very high elasticily and strength This makes it particularly easy to fold, bend, work with, and slide.
HB 500 grade steel is highly wear-resistant and particularly suitable for handing hard minerals and abrasives
HB 550 grade steel combines the best performance of HB 500 and HB 600 grades.
HB 600 grade steel is the hardest wear-resistant steel tested in the market.
