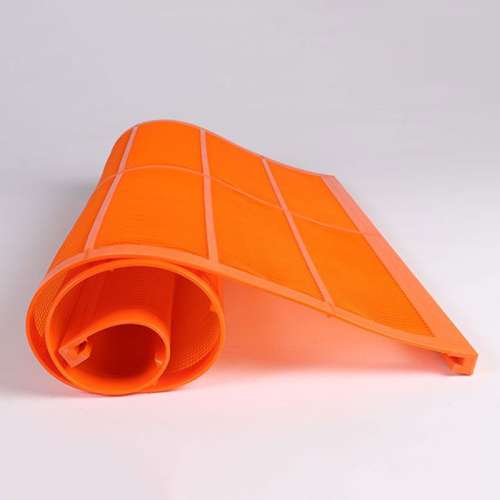

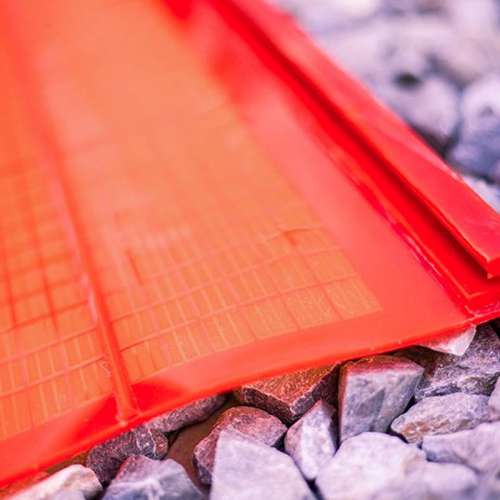

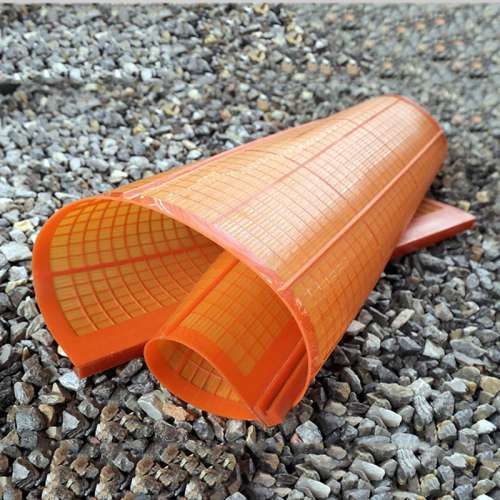

Polyurethane Fine Screen

Product Overview

Polyurethane Fine Screen — Precision Fine Sizing and Anti-Blinding Separation

RedStar polyurethane fine screens are precision fine-screening panels engineered for small-particle sizing where accuracy, slot stability and anti-blinding performance matter most. With aperture openings from 0.063 mm to 1.5 mm, they separate fine ores, iron powder, fine coal, sand and other granular materials with consistent gap tolerance, and are manufactured as direct replacement panels for Derrick screening machines, matching standard Derrick wire mesh and polyurethane screen dimensions.

Built from wear-resistant polyurethane elastomer over a steel wire or steel rope reinforcement skeleton, each fine screen combines elastic self-cleaning behavior with structural strength. The tapered slots stay open under vibration, shed wet and sticky fines, and maintain stable screening efficiency over a longer working life than conventional metal fine meshes.

Key Features

Impact Resistance
Prevents wear on the underlying layer. units.
High Tensile Strength and Vibration Frequency
The fine mesh has high tensile strength and high vibration frequency. Screening efficiency is increased by 10%, and the permeability rate is 11% higher.
Single Installation, No Need for Repeated Tensioning
Once installed, there is no need to retighten repeatedly.
Long Service Life:
The maximum service life can reach up to 9,000 hours.
Environmentally Friendly and Recyclable
The material is environmentally friendly and recyclable.
Injection Molding Process
High precision of sieve holes and high opening rate; no notches and no burrs in the holes.

Technical Specifications
