Product Overview
Perforated Metal Mesh is a versatile and high-strength metal product manufactured by precision stamping or punching on metal sheets or coils. We supply perforated metal products in both standard sheet and continuous coil forms, with a full selection of hole sizes, shapes, patterns and materials to meet diverse industrial needs. We also provide custom cutting services to ensure the product fits your exact specifications and installation requirements.

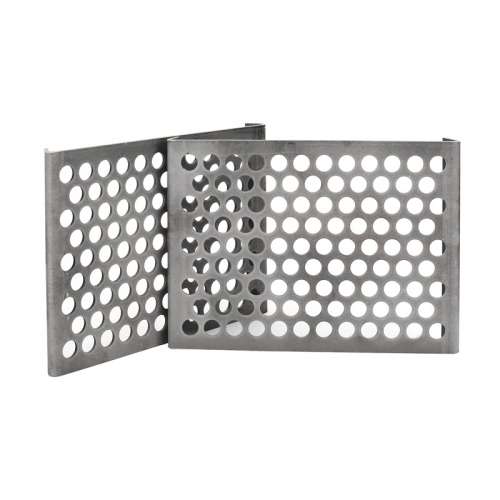

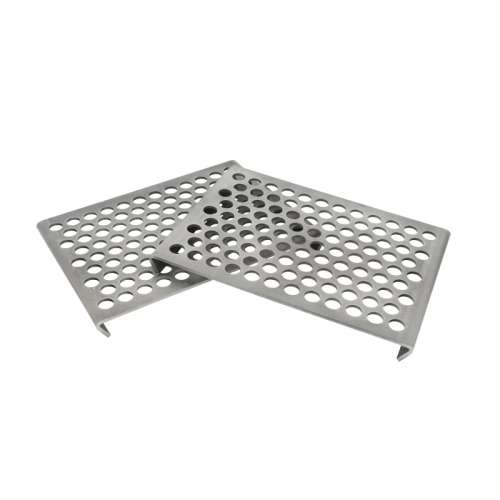

Round hole perforation is the most classic, popular and widely applied pattern due to its excellent structural stability, uniform filtering performance and high mechanical strength. Perforated metal products are professionally defined by two key dimensions: hole size and pitch. The pitch represents the distance from the center of one hole to the center of the next adjacent hole.
All our perforated sheets are strictly produced with a precise triangular pitch layout, which ensures higher open area, better ventilation, stronger structure and longer service life. Our products are widely used in screening, filtering, ventilation, decoration, protection and separation applications across various industries.
Key Features
Technical Specifications
| Hole Diameter | Pitch | Open Area | Plate Thickness |
|---|---|---|---|
| 0.5 | 1.25 | 14.5 | 0.5 |
| 0.8 | 1.6 | 22.5 | 0.5 |
| 0.8 | 2 | 14.5 | 0.8 |
| 1 | 2 | 23 | 0.5-1 |
| 1.2 | 2.25 | 14.5 | 1 |
| 1.5 | 3 | 23 | 0.5-1.5 |
| 1.8 | 3 | 33 | 1 |
| 2 | 3.5 | 30 | 0.5-1.5 |
| 2 | 4 | 23 | 2 |
| 2.5 | 4 | 35 | 0.5-1.5 |
| 2.5 | 5 | 23 | 2-2.5 |
| 3 | 5 | 33 | 0.5-2 |
| 3 | 6 | 23 | 3 |
| 3.5 | 5 | 44 | 0.5-1.5 |
| 3.5 | 6 | 31 | 2\3 |
| 4 | 6 | 40 | 0.5-1.5 |
| 4 | 7 | 30 | 2\3\4 |
| 5 | 7 | 46 | 0.5-1.5 |
| 5 | 8 | 35 | 2\3\4\5 |
| 6 | 8.5 | 44 | 0.5-1.5 |
| 6 | 10 | 33 | 2\3\4\5\6 |
| 7 | 10 | 44 | 1\1.5 |
| 7 | 11 | 37 | 2\3\4\5\6 |
| 8 | 11 | 48 | 0.8-1.5 |
| 8 | 12 | 40 | 2\3\4\5\6 |
| 8 | 15 | 26 | 8 |
| 8 | 15 | 45 | 2 |
| 9 | 13 | 45 | 1\1.5 |
| 9 | 14 | 37 | 2\3\4\5\6 |
| 10 | 14 | 46 | 0.8-1.5 |
| 10 | 15 | 40 | 2\3\4\5\6 |
| 10 | 18 | 28 | 8\10 |
| 12 | 16 | 51 | 1-1.5 |
| 12 | 17 | 45 | 2\3\4\5\6 |
| 12 | 20 | 32 | 8\10 |
| 14 | 20 | 44 | 8\10 |
| 15 | 18 | 63 | 1-1.5 |
| 15 | 22 | 42 | 2\3\4\5\6 |
| 15 | 24 | 35 | 8\10 |
| 15 | 24 | 22.5 | 2 |
| 16 | 20 | 58 | 1-1.5-2-3-4-5-6 |
| 16 | 24 | 48 | 8\10 |
| 18 | 22.5 | 56 | 1\1.5 |
| 18 | 25 | 47 | 1.5\2.5 |
| 18 | 27 | 40 | 5-6-8-10 |
| 20 | 25 | 58 | 1\1.5 |
| 20 | 27 | 49 | 2\3\4\5\6 |
| 20 | 30 | 40 | 8\10 |
| 22 | 28 | 56 | 2\3\4\5\6\8\10 |
| 25 | 34 | 49 | 1\1.5\2\4-10 |
| 28 | 35 | 58 | 4\5\6\8\10 |
| 30 | 37 | 60 | 1\1.5\5\3\4\5\6 |
| 30 | 40 | 51 | 8\10 |
| 35 | 46 | 52 | 2\3\4\5\6\8\10 |
| 40 | 50 | 58 | 2\3\4\5\6\8\10 |
| 45 | 60 | 51 | 2\4\5\6\8\10 |
| 50 | 62 | 59 | 2\3\4\5\6\8\10 |
| 60 | 75 | 58 | 4\5\6\8\10 |
| 70 | 84 | 61 | 4\5\6\8\10 |
| 80 | 96 | 62 | 4\5\6\8\10 |
| 90 | 112 | 58 | 4\5\6\8\10 |
| 100 | 124 | 58 | 4\5\6\8\10 |
Common Materials and Properties
Carbon Steel
Characteristics: Perforated screen plates made of carbon steel are the most commonly used. Their main feature is their simple and ordinary production process (direct cold forming).
Stainless Steel
Characteristics: AISI 304 material has excellent mechanical properties and high corrosion resistance.
AISI 316 steel plates are characterized by the presence of molybdenum in their chemical composition. They areresistant to strong acidic reagents.
Wear-Resistant Steel
- Characteristics: Perforated plates made from wear-resistant steel are particularly suitable for high-wear production lines. They feature high hardness, strength, and elasticity.
HB 400-450 steel has very high elasticily and strength This makes it particularly easy to fold, bend, work with, and slide.
HB 500 grade steel is highly wear-resistant and particularly suitable for handing hard minerals and abrasives
HB 550 grade steel combines the best performance of HB 500 and HB 600 grades.
HB 600 grade steel is the hardest wear-resistant steel tested in the market.
