Product Overview

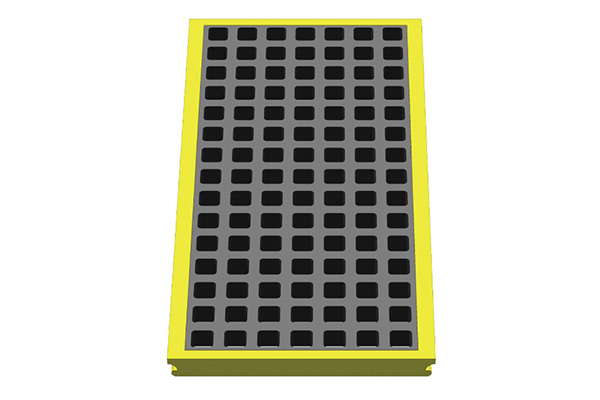

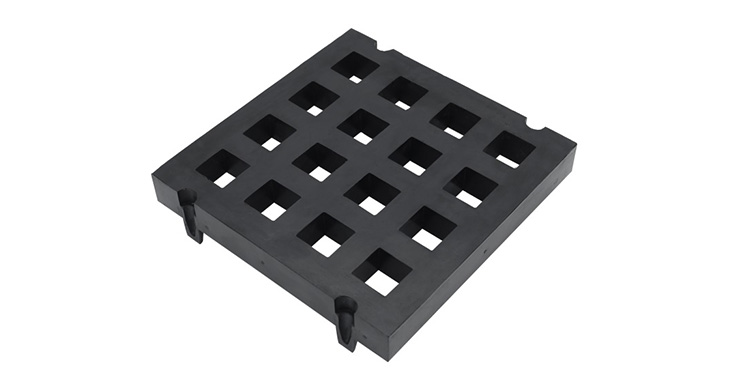

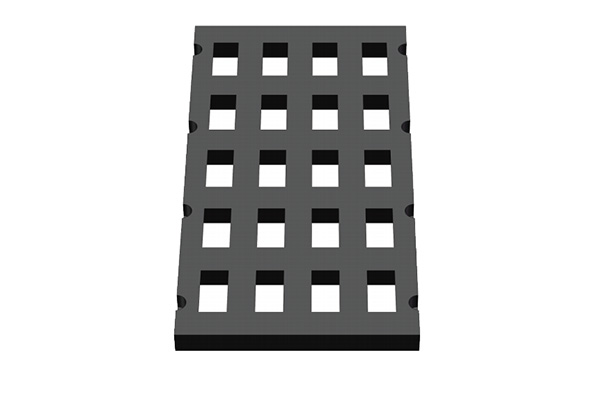

Red Star Modular Rubber Screen panels are heavy-duty, injection-molded screening solutions engineered for modular vibrating screen systems. Manufactured from premium abrasion-resistant rubber compound, these rigid modular panels deliver outstanding shock resistance, stable structural performance and ultra-long service life compared with traditional metal screens.

Featuring tapered anti-clogging apertures, the modular rubber screens effectively solve blinding and pegging problems when screening wet, sticky and high-impact mineral materials. Adopting standard bolt-down and snap-in installation structure, the single-module design allows partial replacement instead of full-deck changing, greatly reducing maintenance cost and downtime.

Available in multiple aperture sizes, thicknesses and rubber hardness grades, our modular rubber screens support flexible deck combination. They are widely applied for coarse, medium and fine grading, dewatering and scalping operations in mining, quarry aggregate production, coal washing and construction waste recycling.

Key Features

Superior shock absorption

They effectively mitigate impact forces from large falling materials.

Strong elastic self-cleaning capability

Generates secondary rebound vibrations upon material impact. Ideal for wet and sticky materials.

Excellent wear resistance

Ideal for processing medium-hardness materials. Has a longer service life than standard metal screens.

Easy installation and low maintenance

Effortless handling and setup minimize downtime.

Moderate cost

Competitively priced screen plates.

Technical Specifications

Item	Technical Specifications
Material	High wear-resistant integral molded rubber
Rubber Hardness	65 – 90 Shore A
Aperture Range	2mm – 60mm (tapered anti-clog holes)
Panel Thickness	10mm – 40mm

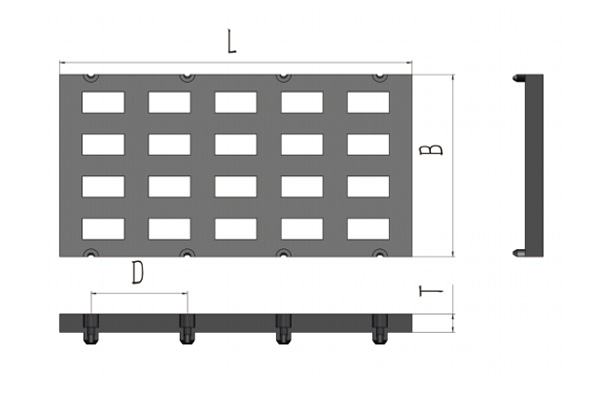

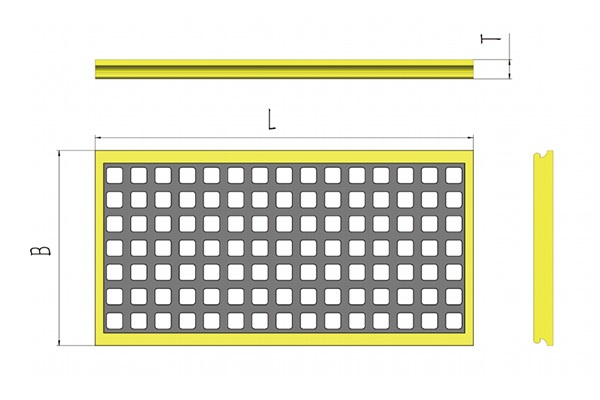

Standard Panel Size	305×305mm / 305×610mm (custom available)

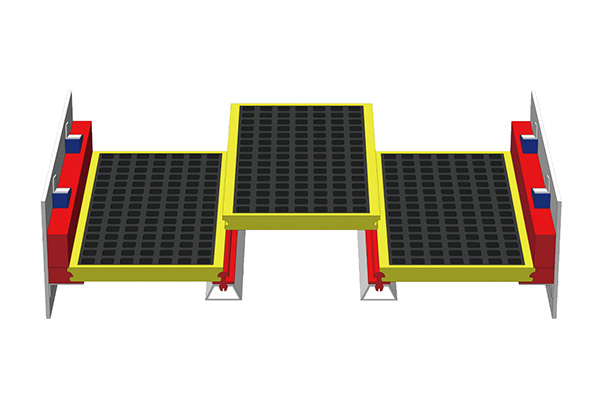

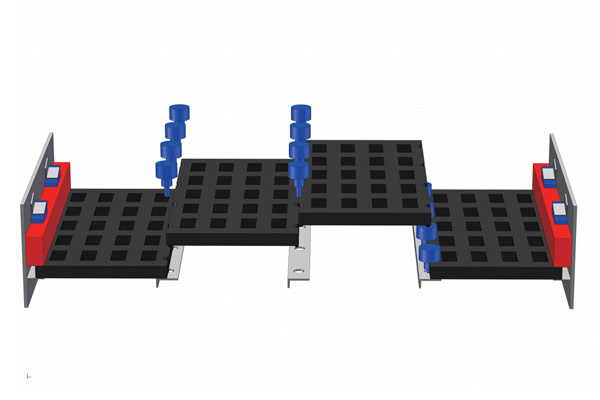

Installation Type	Snap-in / Bolt-down modular fixing
Core Advantage	Partial replacement, low maintenance cost, anti-blinding
Working Temperature	-30℃ to +80℃
Application	Mining, quarry aggregate screening, coal washing, dewatering, waste recycling
Custom Service	Custom aperture, thickness, size and mounting structure
