Customization Process and Prototyping Lead Time for Non-Standard Welded Wire Screens
For industrial operations with unique screen deck layouts, special sizing requirements or non-standard mounting systems, finding off-the-shelf screening media that perfectly fits their workflow is almost impossible, and rushing an unvetted custom order often leads to mismatched dimensions, poor performance and costly wasted production time. Many operations told us they previously waited weeks for a custom batch only to find the panels did not line up with their existing bolt holes or failed to deliver the exact classification accuracy they needed, with no way to adjust the design before full mass production. A clear, step-by-step customization process with transparent lead time planning for Welded Wire Screens eliminates all these avoidable risks, making sure your final custom product matches every single one of your unique operational requirements.
Technical Confirmation and Custom Drawing Development
The first step in the process starts when you share all your site’s specific details, including exact deck dimensions, mounting hole positions, required aperture size, wire diameter and special load-bearing requirements, and the engineering team will turn all these details into a fully dimensioned 2D custom drawing for your review and formal sign-off. This step usually takes 2 to 3 working days, and it is the most critical checkpoint to catch any potential dimension mismatches before any production work starts, ensuring the final Welded Wire Screens will fit your existing deck perfectly with zero on-site modification needed.
From Sketch to Spec
The first stage of any serious non-standard Welded Wire Screens job is translation, not production. A buyer sends a photo of the old panel, a CAD snippet, or a scribble that says "about 1.2 by 2.4, square holes, heavy at the feed end," and the factory has to convert that into a real specification: wire diameter, mesh pitch, aperture, crimp or plain weave versus resistance-welded junction, material grade, deck position, stroke, feed top size, moisture, slurry chemistry, and the all-important direction of the bearing wire relative to the support bars. Plain square mesh is easy; a non-standard welded panel lives or dies on details—welded intersections versus crimped intersections, edge wire thickness, hook strip width, frame inclusion, slot orientation, reinforced feed lip, and whether the panel must be reversible. A good supplier pushes back here instead of nodding: "you asked for 3 mm wire at 10 mm square, but your feed has 40% near-size gangue, so you will peg by Thursday—want us to propose 3.2 mm wire with 11×22 mm slotted weld instead?" That argument, held at the spec stage, is what prevents the prototype from becoming an expensive apology. Every non-standard Welded Wire Screens enquiry should leave this stage with a dimensioned drawing, a load or duty note, and a written "if we build this, here is how it will behave."
Prototype: Sample Panel Logic

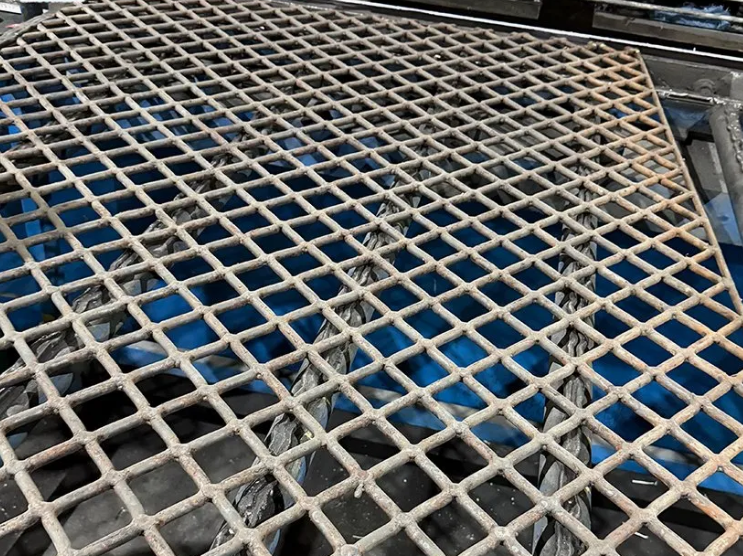

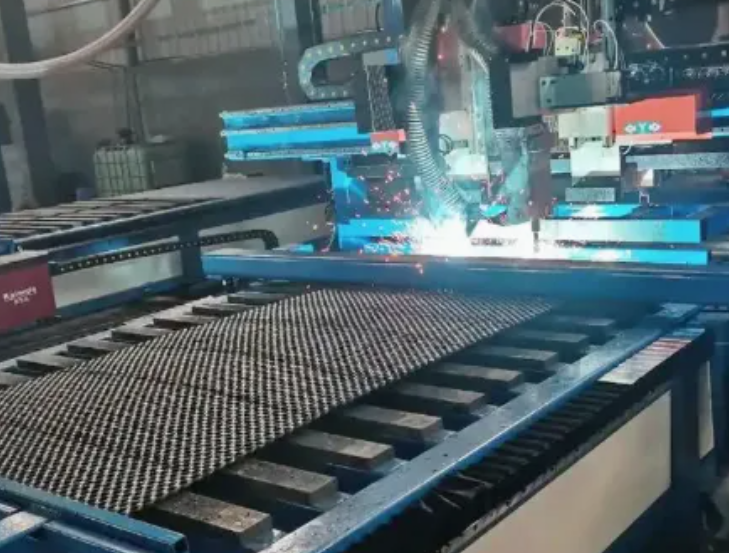

Prototyping is not "weld one panel and ship it." For Welded Wire Screens, the sample exists to de-risk four things: dimensional fit, weld integrity, aperture behavior under real feed, and install compatibility with the existing hook or frame system. A 300×300 mm coupon can prove mesh accuracy, fusion at the crossover, and surface finish, but it cannot prove deck behavior—so shops that know the game often cut a single full-zone prototype panel: one feed-end module, one tricky cutout panel, or one hybrid zone, run it on the client’s deck for a short campaign, and measure aperture drift, crown wear, pegging, and edge movement. Material choice drives part of the clock: mild steel welds fast, 304/316L needs cleaner setup and passivation thinking, 430 or galvanized-after-weld adds a process step, duplex and 904L are a different conversation entirely. The prototype stage also exposes the buyer’s own drawings—many "non-standard" delays are really missing support-bar spacing, wrong hook profile, or a side plate that was rebuilt last shutdown and nobody told the screen supplier. A prototype that fails on the test rig is cheap; a prototype that fails at 2 a.m. on a running screen is not.
What Actually Drives Lead Time
Everybody asks "how fast can you prototype" and almost nobody asks "what are we waiting on." For non-standard Welded Wire Screens, lead time is rarely the welding—it is the queue in front of the welding. Raw wire availability is first: standard 3, 4, 5 mm low-carbon wire is on the shelf, but 2.8 mm 316L with a specific tensile band, or 6 mm duplex for abrasive ore, can add days or weeks before a single panel is touched. Tooling and jig time is next: a new panel width, a new hook bend, a framed panel with punched hole centers, or a two-zone mesh transition needs a fixture, and the first article always takes longer than the repeat. Then come the process gates people forget—pickling/passivation for stainless, hot-dip galvanizing slot, frame welding inspection, dimensional sign-off, export packing, and the freight booking that rides on top. A realistic prototyping window for a first non-standard Welded Wire Screens article might run from a few working days for a simple steel sample to 2–4 weeks when material, fixturing, surface treatment, and inspection all stack up; rushing the engineering to hit a fake deadline usually just moves the failure to site.
Prototype Manufacturing and Performance Validation
Once you approve the final drawing, the team will produce 1 to 3 full physical prototype units using the exact same material and welding process that will be used for the full bulk order, and then run a full set of quality checks including flatness testing, weld pull strength verification and aperture accuracy measurement. This prototyping step typically takes 5 to 7 working days, and it lets you test the units directly on your own site for a short trial run if needed, to confirm the custom Welded Wire Screens deliver the exact sizing performance and durability you are targeting before the full production run begins.
Final Adjustment and Bulk Production Scheduling
After you confirm the prototype meets all your requirements, any small requested adjustments are integrated into the final production drawing, and the full bulk order of custom Welded Wire Screens moves into formal production scheduling, with a clear locked lead time shared with your team before any work starts. For most non-standard orders, this full bulk production step takes 10 to 15 working days, and the team will share regular small progress updates so you never have to wonder where your order stands during the manufacturing process.
When you stick to this customization and prototyping process, you seriously lower the chances of design mistakes. You get a product that truly matches your needs, and you skip the headache of custom panels that just don’t work. If you send us photos of your current screen deck and tell us about your unusual performance requirements, our engineering team will build out a clear customization timeline and give you a detailed prototype quote — no strings attached, totally specific to your project.
