Design Essentials of Bar Screens for Run-of-Mine Coal Pre-treatment in Coal Preparation
For coal preparation plants processing high volumes of raw run-of-mine coal every day, a poorly designed pre-treatment bar screen often leads to frequent blockages, oversized material slipping through, heavy structural wear and constant unplanned downtime that drags down the entire plant’s processing capacity. Many plant maintenance teams told us they spent months troubleshooting their pre-screening section, replacing worn bars and clearing jams every week, never realizing the root cause was a few flawed design choices made when the Bar Screens for Coal Pre-treatment were first selected and installed. Focusing on three core, field-proven design essentials will help you build a far more reliable, low-maintenance pre-treatment screening section that keeps your whole plant running smoothly.
Non-Clogging Tapered Bar Profile and Opening Layout

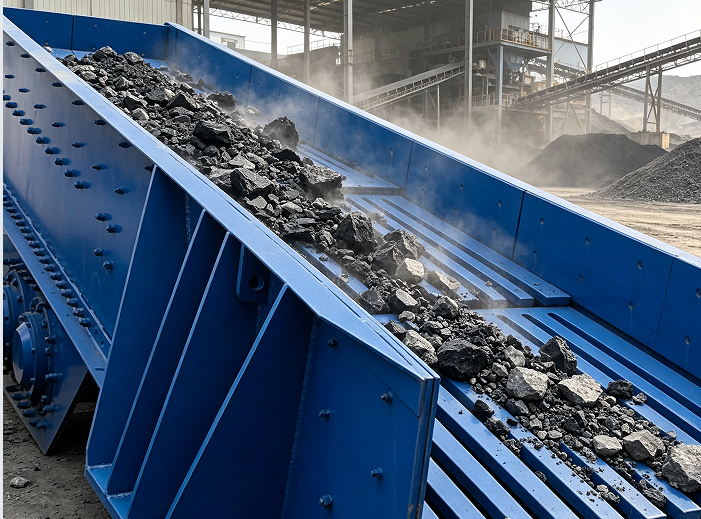

The first core design essential uses a specially tapered bar profile that is wider at the top and narrower at the bottom, with gaps that expand slightly downward instead of staying parallel, so sticky wet fine coal and small near-size particles cannot get wedged tight between the bars during operation. This simple design choice eliminates more than 80% of the regular manual unclogging work most plants deal with, and it keeps the full deck of your Bar Screens for Coal Pre-treatment at consistently high open area even when processing high-moisture raw coal in rainy seasons.
Feed Character Comes First
Before anyone draws a bar profile, the engineer has to respect what ROM coal actually is in that pit, not in a textbook. Thermal coal from a dry seam may arrive as free-breaking lump with little fines; a faulted section after rain can arrive as 18% surface-moisture coal with fireclay smearing the deck and near-size slabs that peg any fixed opening. Bar Screens for Coal Pre-treatment must be specified against the real PSD: top lump size, percentage of material in the near-size band, fraction below the cut, clay and shale content, free moisture, and the refuse type mixed in with the coal. A screen tuned for 150 mm scalping on clean washery feed will blind in a day on a sticky colliery run-of-mine stream, while a screen built for clay-bound feed will over-pass fines on clean dry coal and rob the plant of bypass tonnage. The first design essential is humility in front of the sample: take sieve data from three faces, not one happy load, and design the bar deck for the worst credible week, not the best commissioning morning.
Bar Geometry and the Slabbing Problem
The whole art of Bar Screens for Coal Pre-treatment sits in the gap, the profile, and the step. Plain parallel grizzly bars size only one dimension—width—so a flat slab 120 mm thick, 400 mm long, and 600 mm wide sails through a 150 mm grizzly and then jams the sizer or wrecks the breaker feed, a headache everyone calls “slabbing.” Stepped or cascading bar designs fix part of this by dropping each bar slightly lower and forward of the previous one, so the bed tumbles, long slabs tip, and the opening behaves more like a four-sided cut than a one-way slot. Tapered bar spacing—wider toward discharge—lets near-size coal work itself free instead of wedging, which is why modern bar screens outperform old fixed inclined grates on dirty coal. Bar cross-section matters too: rounded or chamfered tops shed slab edges better than square bars, while the load-bearing depth underneath decides whether a 600 mm lump dents the deck on Monday and the whole row waves by Friday. A bar is not a fence post; it is a wear part with a flow job.
Impact Zone, Frame, and Vibration
ROM coal does not tiptoe onto the deck. It drops off an apron feeder or tippler with enough energy to crack a screen box that was welded by someone in a hurry. Bar Screens for Coal Pre-treatment therefore start with the feed nose: a lined impact zone, sometimes a dead-bed or AR-plate landing strip, before the first bar sees the stream. Side plates should favor bolted high-tensile construction where possible because repeated impact loading from ROM boulders is exactly what fatigues welded corners after 5,000–10,000 hours; individual bar seats, cross members, and liner plates should be replaceable without cutting the machine open. Vibration has to be chosen, not inherited: linear motion with the right stroke and frequency keeps slabs conveying while fines ratchet down through the bars, but too much amplitude turns the deck into a jackhammer and too little lets wet coal camp between the bars. Springs and isolators matter as much as the bars, because a bar screen that shakes the gallery shakes the whole plant’s structural report card.
Reinforced Wear-Resistant Surface and Modular Bar Structure
The second critical design feature adds a high-hardness wear-resistant overlay on the top impact surface of every bar, and uses a fully modular bolted structure instead of permanent welding to secure each bar to the main screen frame. This design lets your maintenance team swap out only the individual heavily worn bars in the high-impact feed area in minutes, instead of cutting out and re-welding full sections of the frame, drastically cutting down on repair time and extending the total service life of your Bar Screens for Coal Pre-treatment by 2 to 3 times compared to standard welded designs.
Optimized Deck Angle and Material Flow Guidance Structure
The third key design essential sets the screen deck angle to a site-specific 12 to 18 degree range matched to your raw coal’s typical moisture content and maximum lump size, and adds a set of curved flow guidance plates at the feed end to spread incoming material evenly across the full deck width instead of piling it all in one small spot. This prevents localized concentrated wear and uneven material flow that would otherwise cause large unprocessed lumps to skip across the screen surface, ensuring your Bar Screens for Coal Pre-treatment delivers consistent, reliable sizing performance across every ton of raw coal that passes through the plant.
These three practical design upgrades will drastically cut down on unplanned downtime, reduce regular maintenance labor, and keep your coal pre-treatment section operating at consistently high efficiency for far longer. If you share details of your plant’s typical raw coal feed volume, maximum lump size and average moisture content, our engineering team can put together a fully customized design proposal tailored exactly to your site’s specific operating conditions.
