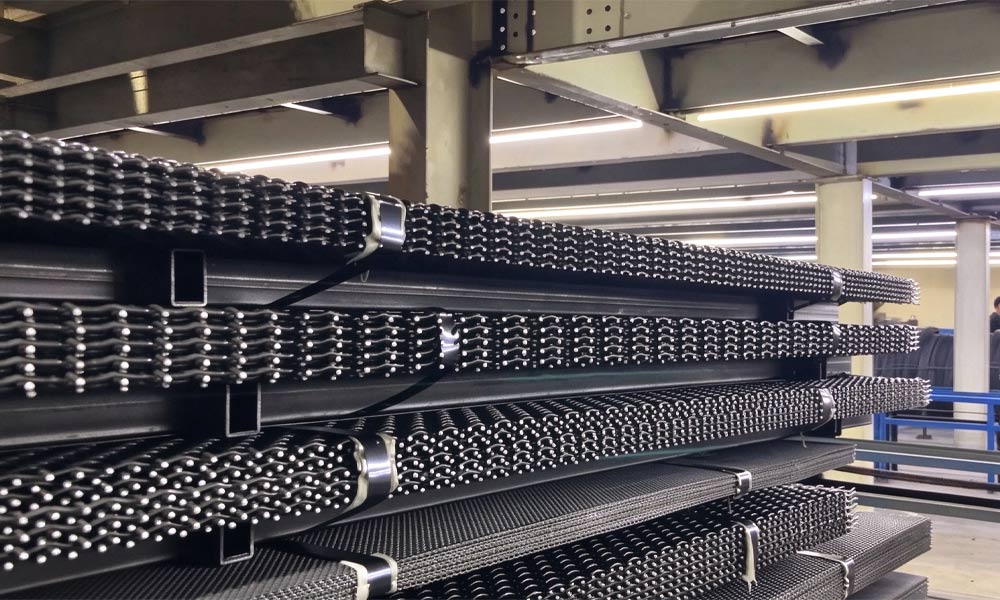

Square Woven Screen Multi-Deck Configuration
If you’ve ever run a high-output quarry multi-deck screening plant, watching your top deck heavy-duty panels tear through in 2 weeks while your bottom fine sizing screens stay almost brand new, forcing you to run mismatched media types that ruin your consistent gradation and waste thousands in premature consumable costs, you know exactly how much poor multi-deck screen selection can tank your operation’s profitability and daily tonnage targets. Many quarry operations managers I’ve worked alongside over the years shared that they struggled for years to find a single screening media type that performed reliably across every deck in their multi-deck circuit, until they standardized on a purpose-built square woven screen multi-deck use configuration that let them tune each individual deck’s specifications perfectly to its unique role. This practical, field-tested guide skips generic marketing talking points and breaks down exactly how this tailored multi-deck setup solves the most frustrating pain points quarry teams face, using real-world insights from operations that have tested every other competing media type.
Top Scalping Deck Configuration for Heavy Boulder Impact Resistance
The first critical design advantage you unlock with a purpose-built square woven screen multi-deck use setup is full customization freedom for your top scalping deck, where the highest volume of large, sharp crushed rock and boulder impact happens every single day. Most generic multi-deck screening media packages force you to use the same thin wire gauge across all decks, which means your top scalping deck will tear through in less than 2 weeks under constant heavy boulder impact, creating unplanned holes that send oversize rock downstream to damage your middle deck panels. When you configure the top deck of this setup with extra thick 8mm to 10mm high-manganese crimped wire, paired with slightly larger apertures sized for your primary scalping separation target, you get a panel that can stand up to thousands of tons of sharp, heavy granite or limestone impact every day, delivering 3 to 4 times longer service life than generic standard woven screens. Most quarries that implemented this tailored top deck configuration reported that they no longer needed to schedule a top deck screen changeout every single week, cutting their top deck consumable labor and material costs by more than 65% immediately.
Middle Classification Deck for Consistent Gradation Control
The second huge performance improvement that comes with a properly engineered square woven screen multi-deck use system is a perfectly optimized middle classification deck, which delivers the tight, consistent sizing accuracy that is impossible to get with slotted or perforated plate panels. The middle deck in a quarry multi-deck circuit is responsible for producing your main mid-sized aggregate product, which is almost always your highest-volume, highest-profit selling grade, so even small inconsistencies in aperture shape and size can create large batches of off-spec material that you cannot sell to your customers. Generic rubber or polyurethane panels on the middle deck flex and warp under heavy material load, distorting their openings and creating inconsistent sizing that makes your final product gradation swing outside of customer specification limits on a daily basis. This tailored middle deck setup uses a fully interlocked double pre-crimp weave that locks every wire intersection completely solid, so every square aperture stays perfectly uniform and aligned for the entire full service life of the panel, delivering extremely tight, stable sizing that keeps your finished product gradation consistently within the exact tolerance ranges your customers require. Many quarries that switched to this setup reported that they completely eliminated rejected off-spec product batches, boosting their total saleable product yield by 7% to 10% almost immediately.
Bottom Fine Sizing Deck for Maximum Open Area and Throughput
The third massive operational win that a purpose-built square woven screen multi-deck use setup delivers is a high-efficiency bottom fine sizing deck, optimized for maximum open area to boost your fine aggregate throughput without sacrificing sizing accuracy. The bottom deck in a quarry multi-deck circuit usually handles the smallest, highest-volume fine material fraction, where throughput is your top priority, and generic heavy thick-wire media cuts your total open area down to less than 25%, creating a huge bottleneck that forces you to run your whole circuit at far lower tonnages to avoid overloading the fine deck. This tailored bottom deck configuration uses a slightly thinner, precision-calibrated high-tensile wire that delivers total open area between 45% and 50%, letting fine material pass through the deck far faster without any unnecessary resistance from thick solid wire sections. This drastic jump in usable open area immediately boosts your bottom deck’s fine material throughput by 30% to 35%, letting you push 200+ extra tons of finished fine aggregate through your circuit every single day, without any upgrades to your existing vibrating screen motor or deck structure. Most quarries that made this switch reported that they hit their annual production tonnage targets 6 to 8 weeks earlier than planned, with zero extra capital equipment investment.
Uniform Tension and Installation System for Cross-Deck Consistency
The final practical day-to-day operational benefit that simplifies all your maintenance work is the standardized hook tension mounting system built into every purpose-built square woven screen multi-deck use panel, which works consistently across every single deck in your multi-deck circuit. Most quarries that use a mismatched mix of perforated plate, rubber and woven screens across their decks have to stock three completely different sets of mounting hardware, tensioning tools and spare parts, and their maintenance crews have to learn three totally different installation procedures for each deck, leading to longer, more error-prone changeouts. With this standardized full woven screen setup, every single panel on all three decks uses the exact same hook tension mounting design, the same tensioning bolts and the same simple installation procedure, so your maintenance team can change out a full 3-deck screening circuit in less than 90 minutes total, with no specialized tools or extra training required. This drastically cuts the total amount of time your plant spends offline for screen changeouts, and eliminates the risk of installation errors that cause premature panel failure. Many quarry teams that standardized on this unified setup reported that their total screen changeout time dropped by more than 60%, letting them get back to full production far faster after every maintenance window.
For high-volume quarry multi-deck screening operations that need to balance heavy impact resistance, consistent product gradation, maximum fine material throughput and simple low-labor maintenance, a purpose-built square woven screen multi-deck use setup outperforms any mismatched mix of competing media types, delivering a full return on your initial investment in less than 3 weeks of full continuous production operation.
