Structural Characteristics of Square Opening Wire Mesh and Its Application in Aggregate Grading
For mining, aggregate processing and precision filtration operations tired of unexpected aperture deformation that ruins product grading accuracy and causes costly unplanned downtime, picking between crimped metal wire mesh and standard woven wire mesh boils down to real-world performance under continuous heavy load. While both are widely used for material screening and separation, their structural differences create massive gaps in long-term aperture consistency. Most field tests show properly manufactured crimped mesh retains 98% of its original opening dimensions after 3 months of continuous high-vibration operation, compared to standard woven mesh that can see up to 20% aperture shift in the same timeframe.
Pre-Locked Crimped Structure Prevents Wire Slippage

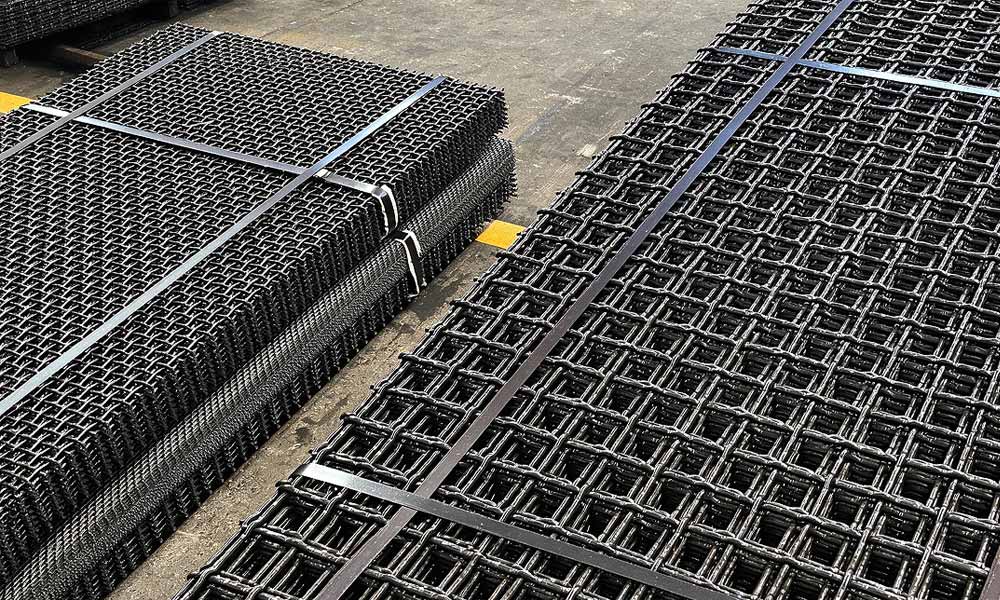

Crimped metal wire mesh uses pre-corrugated, interlocked wires that lock firmly into place at every intersection, with zero room for lateral movement even under repeated heavy impact from falling ore or high-pressure slurry flow. This built-in positioning eliminates the most common cause of aperture distortion in screening operations. Heavy-duty crimped mesh can withstand pressure levels up to 1000MPa without bulging or warping.
How the Square Built and Why the Interlock Does the Work
The structural trick behind square opening wire mesh is a pre-bend, and it is worth picturing because everything else follows from it. Before weaving, both the warp and the weft wires are passed through a crimping roll that presses a wave into them at exactly the pitch of the crossing wires; when the two sets are assembled, the crest of one wire seats into the trough of the other and the pair lock together mechanically. That interlock is what makes the panel behave as a structure rather than as a fabric: a lump landing on one intersection cannot simply push the wires aside, because the crimp geometry transfers the load into neighbouring crossings and out to the support frame. Three crimping styles dominate aggregate duty, and the choice between them is a real decision rather than a catalogue formality. Double crimp puts a pronounced wave in both directions and gives the stiffest, most stable panel, which is what coarse scalping wants. Intermediate crimp bends the weft only, leaving a flatter top surface that stratifies a finer bed better. Lock crimp pulls each intersection tight enough that the panel acts almost like a rigid plate, holding aperture under high tension and heavy bed load, at some cost in open area.
Open Area and Cut Behaviour
The reason aggregate producers keep coming back to a square aperture rather than a slot is that a grading specification is two-dimensional, and only a two-dimensional opening can enforce it. A particle passing through square opening wire mesh has to clear the aperture in both directions, so the deck rejects on the particle's intermediate dimension — its true size for specification purposes — rather than on one lucky axis. That is exactly what standards-based gradation testing assumes, and it is why slotted media, which will happily pass a long flaky particle that a laboratory sieve would reject, tends to produce product that tests coarser than the screen that made it. Open area is the other half of the equation, and here crimped square construction gives up something to gain its stability: the crimps occupy space in the plane of the panel, so effective open area typically lands between roughly 40 and 60 percent depending on wire gauge and aperture, against rather more for a flat-top weave of the same specification.
Standard Woven Mesh Relies On Interweaving Tension
Standard woven metal wire mesh utilizes a simple over-and-under weaving pattern; lacking a crimping process to lock the wires in place, the structure is relatively unstable and prone to loosening under conditions of continuous vibration, excessive heat, or heavy loads. Low-cost woven screens easily deform in 1–2 months, causing particle leakage and lower screening efficiency.
Use Case Matching Delivers The Best Long-Term Value
Standard woven wire mesh works fine for light-load, low-intensity screening. For high-impact aggregate and corrosive slurry working conditions, crimped metal screen mesh provides far higher stability, precise aperture retention and longer service life, bringing significant long-term cost savings.
