Crimped Metal Wire Mesh vs Standard Woven Wire Mesh
For mining, aggregate processing and precision filtration operations tired of unexpected aperture deformation that ruins product grading accuracy and causes costly unplanned downtime, picking between crimped metal wire mesh and standard woven wire mesh boils down to real-world performance under continuous heavy load. While both are widely used for material screening and separation, their structural differences create massive gaps in long-term aperture consistency. Most field tests show properly manufactured crimped mesh retains 98% of its original opening dimensions after 3 months of continuous high-vibration operation, compared to standard woven mesh that can see up to 20% aperture shift in the same timeframe.
Pre-Locked Crimped Structure Prevents Wire Slippage

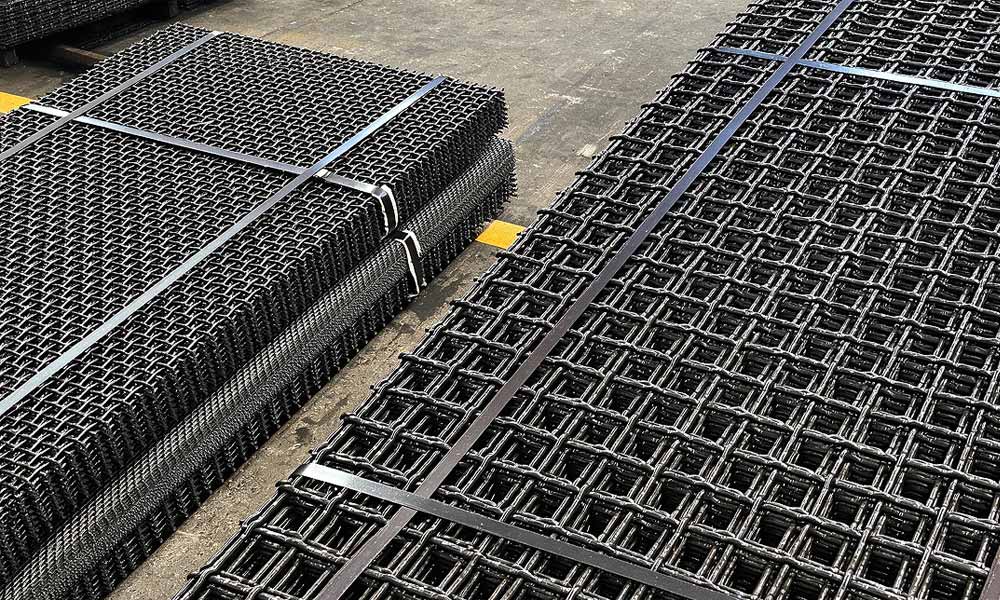

Crimped metal wire mesh uses pre-corrugated, interlocked wires that lock firmly into place at every intersection, with zero room for lateral movement even under repeated heavy impact from falling ore or high-pressure slurry flow. This built-in positioning eliminates the most common cause of aperture distortion in screening operations. Heavy-duty crimped mesh can withstand pressure levels up to 1000MPa without bulging or warping.
What Aperture Stability Actually Means the Machine Starts
Aperture stability is not the same thing as accuracy, and conflating the two is what leads to disappointment. Accuracy is whether the holes were the right size when the panel left the factory, and both constructions can be made accurately. Stability is whether they are still the right size after the panel has been tensioned, has taken a few hundred thousand impact cycles from coarse feed, has carried a wet bed, has flexed against its supports, and has had a crew standing on it during a change-out. Every one of those events pushes the weave somewhere: wires bend, crimps flatten, the whole panel creeps in the direction of the machine's stroke, and an aperture that started as a clean square becomes a parallelogram that will pass a particle it was supposed to reject. A crimped metal screen resists this because its geometry is fixed at every intersection rather than at the frame, whereas a standard woven wire mesh relies on the wires being pulled taut and staying that way, which is a condition a vibrating machine spends its entire life trying to undo.
Why a Crimp Turns a Stack of Wires Into a Structure
The crimp is the whole trick, and it is worth seeing clearly because it explains most of the behavioural difference. In a crimped metal screen the warp and weft wires are pre-bent before weaving, with a wave pressed into each wire at exactly the spacing of the crossing wires, so when the two sets are assembled the crests of one wire seat into the troughs of the other and the two lock together mechanically. That interlock does three useful things at once: it stops the wires sliding past each other under lateral load, it distributes a point impact from a falling lump across several neighbouring intersections instead of concentrating it at the one that was struck, and it means the panel holds its aperture even when it is not under high tension. The variants matter too — a double crimp puts a pronounced wave in both directions and gives the stiffest, most stable panel for coarse duty; an intermediate crimp bends only the weft wire and leaves a smoother top surface; a lock crimp pulls the intersections tight enough that the panel behaves almost like a rigid plate. Each of those is a deliberate trade between stability, open area and how the surface sheds material, and specifying one of them properly is most of the work.
Where Standard Woven Mesh Gets Its Strength and Gives It Back
Plain woven wire mesh — the standard construction most people picture — is made from straight wires woven over and under one another with no pre-bend, which gives it two real advantages and one structural weakness. The advantages are open area and surface smoothness: without crimps the wires can sit closer in the plane of the panel, so a fine plain weave can achieve open areas a crimped construction of the same aperture cannot touch, and a flat surface stratifies and drains a fine bed rather well. The weakness is that nothing stops the wires from moving relative to one another except friction at the crossing points and whatever tension the frame applies, so under a vibrating load the weave tends to work loose in the direction of the longest unsupported span, the wires slide at the intersections, and the aperture opens up in one diagonal while closing in the other.
Standard Woven Mesh Relies On Interweaving Tension
Standard woven metal wire mesh utilizes a simple over-and-under weaving pattern; lacking a crimping process to lock the wires in place, the structure is relatively unstable and prone to loosening under conditions of continuous vibration, excessive heat, or heavy loads. Low-cost woven screens easily deform in 1–2 months, causing particle leakage and lower screening efficiency.
Use Case Matching Delivers The Best Long-Term Value
Standard woven wire mesh works fine for light-load, low-intensity screening. For high-impact aggregate and corrosive slurry working conditions, crimped metal screen mesh provides far higher stability, precise aperture retention and longer service life, bringing significant long-term cost savings.
If you are still dealing with frequent aperture deformation and inconsistent grading results from your current mesh, we can help you pick the exact crimped woven wire mesh or standard woven mesh to match the unique operating conditions. Reach out today for a free custom performance assessment and no-obligation quote to boost your operation’s sorting consistency right away.
