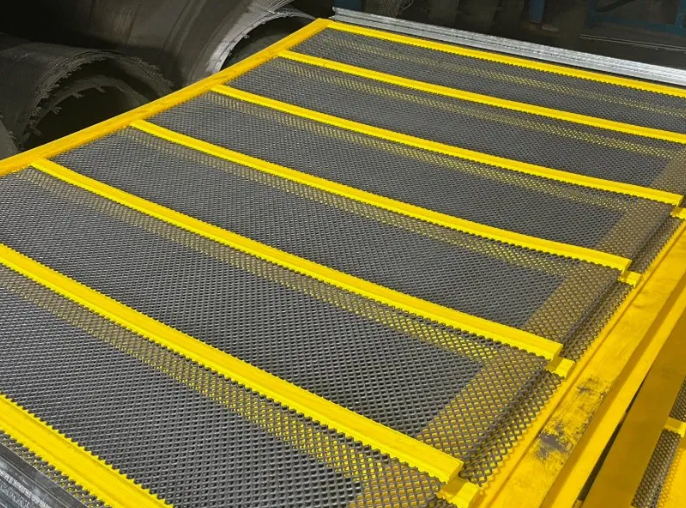

Selection and Tested result of Self-Cleaning Screens for Processing High-Clay Ore

Anyone who has run a high-clay ore through a conventional sizing deck knows that the trouble rarely announces itself all at once. The mesh loads up gradually, open area disappears faster than the shift report suggests, and before long the circuit is circulating material it should have already passed, simply because the deck can no longer shed what sticks to it. That slow loss of capacity is what pushes most operators toward self-cleaning screens, though the decision is worth far more than a like-for-like panel swap, because the screens that genuinely handle plastic clay behave quite differently from those that merely claim to resist blinding.

What Clay Actually Does to a Screening Surface

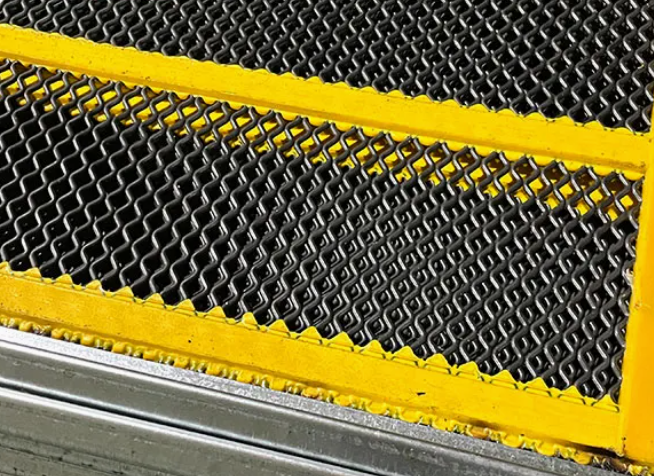

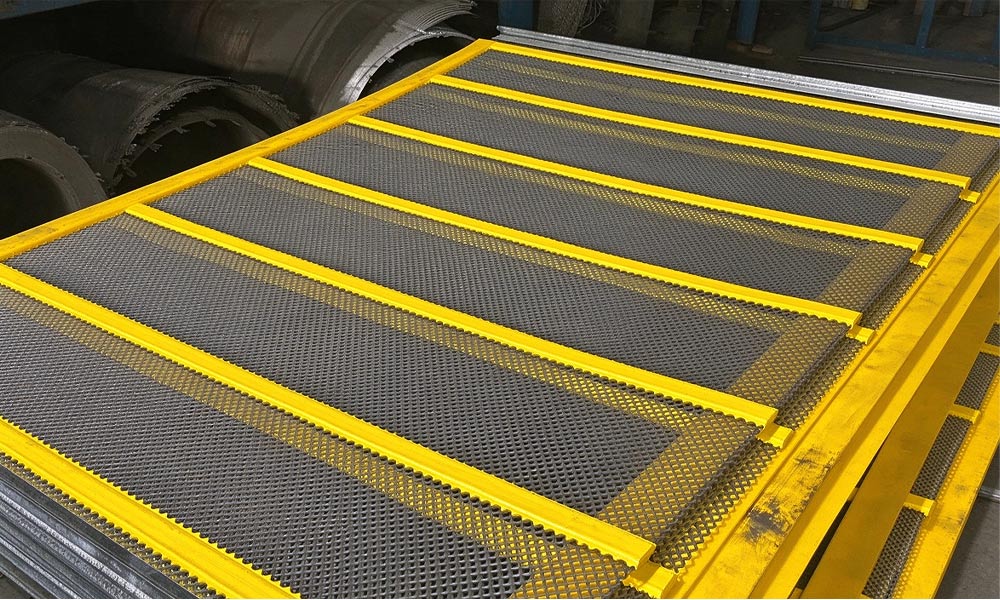

Clay misbehaves for reasons that have less to do with particle size and more to do with behaviour under pressure and moisture, since a soft, plastic feed tends to smear across wire rather than tumble over it, and once a thin film bridges the slot the remaining material builds on that film with impressive speed. This is where the difference between ordinary wedge wire and self-cleaning screens becomes obvious, because the latter rely on independently vibrating wires or resilient polyurethane strips whose movement breaks the forming bridge before it can consolidate, which means the deck keeps its effective open area instead of losing it quietly over a shift.

Selecting for the Duty Rather Than the Datasheet

Selection starts with the moisture content and plasticity index rather than the headline tonnage, and the teams that get this right usually accept a slightly coarser cut at the panel to protect capacity, since chasing an extra two millimetres of precision on a sticky feed nearly always costs more in throughput than it returns in product quality. Wire orientation, deck slope, and the amplitude of the cleaning action all deserve equal attention, and it is sensible to ask a supplier how the self-cleaning panel performs after eight continuous hours, not merely in the first thirty minutes of a demonstration.

What the Plant Trial Showed

Over a twelve-week trial on a weathered ore with roughly eighteen percent clay, the self-cleaning screens held throughput between 210 and 235 tonnes per hour against the 165 to 190 range recorded on the previous woven wire panels, while blinding-related washdowns fell from nine per week to a single scheduled clean. Screening efficiency on the undersize fraction settled near ninety-two percent, and the panel showed no measurable slot widening at the halfway inspection, which was the figure that finally convinced the maintenance team.

The most useful outcome of a trial like this is knowing which compromise you are making, and choosing it deliberately rather than discovering it later. Send us your feed analysis, moisture range, and target cut, and we will help you match screen type and panel specification to the ore you actually run.
