Screening Challenges with sticky Materials and the Solution Offered by Self-Cleaning Flip-Flow Screens

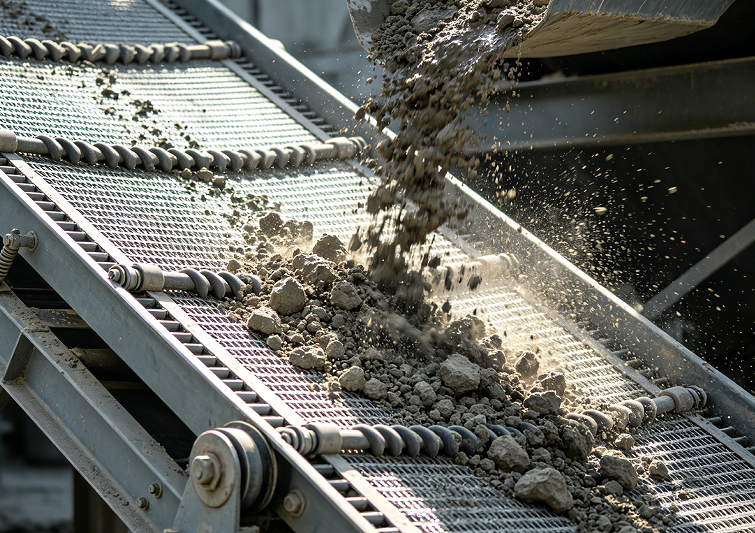

When screening sticky, wet bauxite mud, standard screens quickly become clogged, rendering the screening process ineffective; manual cleaning with high-pressure water guns and shovels is arduous and often fails to fully clear the buildup. Traditional vibrating screens cannot withstand the challenges posed by such sticky materials, resulting in substandard throughput and lower screening efficiency. The advent of self-cleaning flip-flow screens has resolved this problem.

Three Major Challenges in Screening Highly Sticky Bauxite

The sticky mineral components in bauxite develop strong adhesion upon contact with water, overwhelming standard rigid screens. The first major challenge is total blinding: wet mud coats the screen surface like glue, preventing fines from passing through; consequently, a large volume of usable particles is lost with the oversize material, slashing recovery rates by more than half. The second challenge is aperture clogging: semi-dry bauxite particles easily become wedged in circular openings, tightening further with vibration; manual clearing takes hours, driving up time costs. The third challenge is rapid screen wear: bauxite particles mixed with mud cause continuous abrasion and impact; standard steel wire screens wear out in less than a week, necessitating frequent replacements.

Targeted Solutions Offered by Self-Cleaning Flip-Flow Screens

Designed specifically for bauxite processing conditions, self-cleaning flip-flow screens utilize elastic polyurethane panels and an alternating tensioning structure. The screen undergoes hundreds of high-frequency flip-flow cycles per minute, ensuring that no aperture maintains a fixed shape; this action shakes off adhering bauxite mud, fundamentally preventing blinding and clogging. These screens maintain a clogging rate of under 5% and deliver double the screening efficiency of standard vibrating screens.

Real-World Performance of Self-Cleaning Flip-Flow Screen Mats in Mining Operations

Following the switch to self-cleaning flip-flow screen mats across various open-pit bauxite projects, mines have seen the average service life of the screens extend from just a few days to several months. Hourly material throughput per screening unit has doubled, and the need for dedicated personnel to monitor the screen surface around the clock to clear mud buildup has been eliminated—effectively slashing the overall operation and maintenance costs of the screening process by half.

When screening highly sticky bauxite, conventional approaches such as increasing screen thickness or raising water pressure—simply do not work. By leveraging a core design based on dynamic deformation, self-cleaning flip-flow screen mats fundamentally resolve the industry-wide challenges of screen blinding and material clogging, making them a widely recognized, cost-effective solution for screening highly adhesive minerals.
