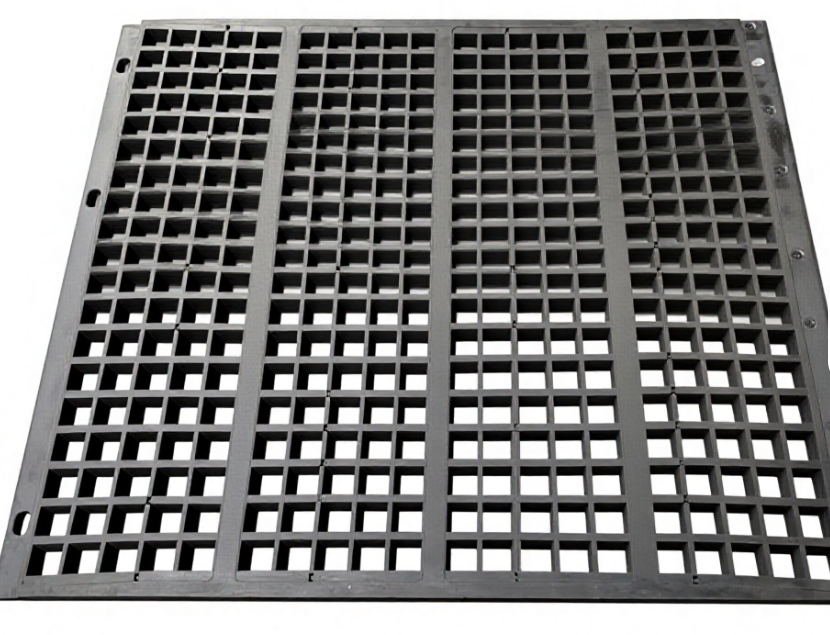

Edge Sealing Design for Rubber Screen Panels: Preventing Fine Powder Leakage

For mineral processing, chemical and industrial classification operations that handle high-value fine powder materials, small gaps between adjacent screen panels or between the panel edge and the deck side frame often create hidden leakage paths that let fine particles slip through without being properly sized, causing major product quality inconsistencies and unnecessary material loss. Many operations spent months troubleshooting uneven final product gradation, only to find the root cause was tiny, easily overlooked gaps around the edges of their screen panels that no one had paid attention to. A properly engineered ‌Rubber Screen Edge Sealing Design‌ completely eliminates these hidden leakage paths, delivering consistent sizing accuracy and drastically reducing fine powder loss across your entire screening operation.

Interlocking Tapered Edge Profile Between Adjacent Panels

The first core feature of the optimized ‌Rubber Screen Edge Sealing Design‌ uses a precision molded interlocking tapered profile on the two side edges of each individual panel, which fits tightly into the matching tapered groove on the adjacent panel, creating a continuous, zero-gap flexible seal between every two units across the full screen deck surface. Unlike flat, straight cut edges that leave small variable gaps when panels vibrate and shift slightly during operation, this interlocking profile stays fully sealed even under high-frequency heavy-load vibration, so no fine powder can slip through the joint between panels.

Integrated Compression Lip Sealing Against Deck Side Frames

The second key part of the ‌Rubber Screen Edge Sealing Design‌ adds a thick, flexible molded compression lip that runs along the full outer edge of every panel, which presses tightly against the rigid metal side frame of the screen deck when the panels are fully clamped down into place. This integrated lip replaces the separate, easy-to-age rubber sealing strips that many operations stick onto the deck frame manually, which often shift, tear or degrade after a few weeks of operation and create new leakage gaps that let fine powder escape past the deck edge.

Reinforced Embedded Steel Core at Sealing Edges

The third critical upgrade in the high-performance ‌Rubber Screen Edge Sealing Design‌ embeds a thin, flexible steel reinforcing core right along the full length of every sealing edge, which keeps the seal profile from stretching, warping or deforming even after months of continuous heavy vibration and temperature fluctuations. This prevents the common long-term failure issue where soft, unreinforced rubber sealing edges slowly deform over time, creating new gaps that start leaking fine powder long before the main screening surface of the panel shows any visible signs of wear or damage.

This fully integrated edge sealing solution can help most operations cut fine powder leakage loss by more than 90%, stabilize final product gradation consistency, and reduce unnecessary waste of high-value fine materials. If you share details of your current screen deck dimensions, typical fine powder particle size range and existing panel edge structure, our engineering team can put together a fully customized edge sealing design proposal that fits perfectly into your existing screening system.
