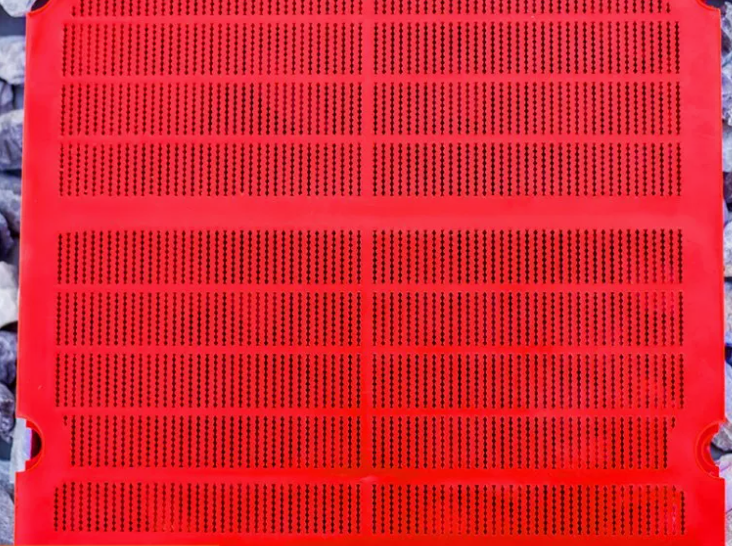

Wear Resistance and Sealing Performance of Polyurethane Screen Plates for Filter Presses
For mining, chemical processing and industrial dewatering operations that rely on filter presses to separate solid materials from slurry, balancing wear resistance and reliable sealing performance in their screen panels is one of the biggest pain points that directly impacts overall dewatering efficiency and total equipment uptime. Many operations that previously used traditional rubber or woven metal filter panels often face the frustrating problem of rapid surface erosion from high‑velocity abrasive slurry, or unexpected slurry leakage around the panel edges that reduces filtration quality and creates messy, unsafe working conditions on site.
Wear Side: Compound, Profile, and Abrasion Under Pressure
Filter-press wear is sneakier than deck wear because there is no constant vibration shaking the bed loose—there is feed velocity, solids loading, crystal sharpness, and the slow scraping action of the cake being discharged. A Polyurethane Screen Plate in this duty should usually be polyether-based when the slurry is wet, recirculated, or chemically loaded, because polyether resists hydrolysis far better than polyester, which can soften and crumble in long-soak conditions. Hardness is a balancing act: around 85–90 Shore A gives good rebound and cutting resistance for many dewatering plates, while coarser abrasive tails may push toward 90–95 A and finer sticky cakes may prefer 80–85 A so the surface keeps flexing instead of chalking. Abrasion is governed by more than Shore value—filler type, tear strength, rebound, and surface profile all matter, and a plate with tapered peaks or ridged crowns sheds cake better than a flat face that lets abrasive solids skate back and forth in the same groove. In practice, a well-formulated plate can run 3–5× longer than steel mesh and 1.5–3× longer than rubber in wet abrasive duty, but only if feed pressure stays within the designed range.
Seal Side: Edge, Groove, and Compression That Actually Holds
Sealing is where filter-press PU lives or dies. The pressing frame squeezes the plate stack with serious clamp force, and the Polyurethane Screen Plate has to act as both media and gasket: the working face classifies and drains, while the perimeter, tongue-and-groove interface, or molded lip prevents filtrate bypass. Good designs mold a slightly softer sealing lip into a harder structural body—dual-durometer construction—so the core resists deformation and the lip compresses 30–40% without extruding out of the groove. Uniform compression is everything; if the support frame is warped more than a few millimeters per meter, one corner carries the load, the lip takes a permanent set, and slurry starts weeping exactly where nobody wants to put a wrench. Bolt holes, pin sockets, and molded-in steel skeletons need to be placed away from the compression zone, because a fastener that pulls through the sealing land turns a filtration asset into a leak path.
How to Specify Both Without Buying a Compromise
The mistake in most inquiries is asking for “wear-resistant PU plate” and forgetting to mention clamp pressure, filtrate pH, cake discharge method, and plate-stack flatness. A useful specification for a Polyurethane Screen Plate names the slurry solids, particle shape, feed pressure, cycle time, filtrate chemistry, operating temperature, frame type, sealing interface, and the failure you are replacing—edge weep, surface scoring, lip take-set, aperture enlargement, or cake sticking to the face. Laboratory evidence should back the claim: Shore A per ASTM D2240, tensile and elongation per ASTM D412, tear per ASTM D624, abrasion loss per DIN 53516 / ISO 4649, compression set after heat and slurry soak, hydrolysis or chemical-immersion swell, and a compression-deflection check on the sealing lip. Field acceptance is even simpler and harder to fake: after 500–1000 cycles, measure aperture growth, check the sealing lip for permanent deformation, weigh cumulative solids loss in the filtrate, and inspect the perimeter for slurry staining that proves bypass. A plate that wears slowly but leaks is not a filter plate; a plate that seals tight but erodes in three weeks is not wear-resistant. The spec has to refuse both failures.
Abrasive Slurry Wear Resistance Advantages
The first core performance strength of Polyurethane Screen Plates for filter press applications comes from the excellent inherent abrasion resistance of high‑grade polyurethane, which can withstand continuous high‑velocity impact from sharp, mineral‑rich slurry far better than ordinary rubber or standard woven metal panels. Unlike metal panels that easily develop deep gouges and uneven surface wear after just a few weeks of operation, these Polyurethane Screen Plates maintain a consistent flat filtration surface for far longer, preventing uneven slurry flow distribution across the panel that would otherwise reduce overall dewatering efficiency and create inconsistent final cake moisture content.
Edge Sealing and Operational Stability Performance
The second key performance advantage that sets specialized Polyurethane Screen Plates apart from ordinary filter media is their precisely molded integrated sealing edge design, which creates a uniform, perfectly flush contact surface that lines up exactly with the filter press plate’s sealing groove when the equipment is fully closed. This eliminates the tiny gaps that usually cause fine slurry leakage under high operating pressure, a problem that is extremely common with generic woven metal panels and low‑quality rubber screens that easily deform after repeated high‑pressure cycles.
High‑performance Polyurethane Screen Plates purpose‑built for filter press operations deliver the rare combination of exceptional long‑term wear resistance and rock‑solid consistent sealing performance, helping sites extend panel service life, reduce unplanned filter press downtime and produce far more consistent dewatering results. If you need a custom filter press screen panel design tailored to your exact slurry characteristics, operating pressure and existing filter press model, our technical team can provide a fully optimized solution that delivers both the wear life and sealing performance your operation demands.
