End-to-End Solution for Customization and Rapid Delivery of Non-Standard Steel Grating
For industrial sites, mining operations and special construction projects that need unique, one-of-a-kind walkway, platform or drainage cover structures, finding a supplier that can deliver perfectly fitted custom products on a tight timeline is often a major frustrating bottleneck. Many project teams told us they previously waited weeks for custom units only to find the dimensions did not line up with their pre-installed support frames, or the load rating failed to meet their site’s heavy vehicle traffic requirements, leading to costly project delays and rework. A full end-to-end service package built around Non-Standard Steel Grating eliminates all these avoidable pain points, delivering perfectly matched custom units without stretching your project timeline.
Fast Technical Confirmation and Custom Drawing Sign-Off
The first step in the full workflow lets you share your exact site requirements, including unique dimensions, special cutouts for pipe penetrations, required load rating, surface treatment and any special mounting details, and the engineering team will turn all these details into a fully dimensioned production drawing in 1 to 2 working days. This quick, no-hassle review process ensures every single specific requirement you have is captured before any production starts, so your final Non-Standard Steel Grating will fit your pre-built support structure perfectly with zero on-site cutting or modification needed.
Drawing Deepening and Load Engineering
The fastest way to kill a rapid-delivery promise is to start production from a blurry PDF and a hope. Proper Non-Standard Steel Grating work begins with translation: a site photo, a hand sketch, a P&ID snippet, or a structural model gets turned into a dimensioned shop drawing that states bearing-bar direction, span, support width, mesh pitch, cutouts, nosing, kick plate, frame interface, and the load case the panel must survive. Walkways care about deflection and slip resistance, stair treads care about heel load and nosing grip, trench covers care about wheel load and lift handling, and equipment platforms care about point loads from pumps and valves—treating them all as “grating” is how plants end up with a catwalk that feels like a trampoline. Good suppliers run the load math before cutting steel: uniform load in kPa or psf, concentrated load at the front edge, traffic class from pedestrian to heavy truck, deflection limit such as L/240 or L/360, and a bar size that earns its weight instead of guessing 32×5 because last year’s project used 32×5. Once the drawing is signed, the Non-Standard Steel Grating is no longer a sales item—it is a structural deliverable with a paper trail.
One-Factory Fabrication and Finish
Rapid does not mean rough. The plants that deliver non-standard work quickly are usually the ones that refuse to outsource the soul of the product to three subcontractors and a galvanizer they have never visited. Bearing bars are cut and resistance-welded on press lines, cross bars are set to 30/40/60 mm pitch, panels are sawn or plasma-cut for pipe penetrations and column notches, edges are banded so the cut ends do not splay, stair treads get carrier plates and anti-slip nosing, and trench covers get lift handles or hinge provisions where maintenance access matters. Then comes the finish that decides service life: hot-dip galvanizing to ASTM A123 / ISO 1461 / GB/T 13912, with coating thickness checked by magnetic gauge and reported per lot, or pickling and passivation for stainless in chloride-heavy duty. A Non-Standard Steel Grating panel that leaves the factory black, then gets galvanized by a shop that does not understand banded edges, will warp, stick, or hide thin zinc at the welds. The whole point of an integrated workflow is accountability—when the same team welds it, cuts it, galvanizes it, and packs it, the excuse “the other shop did that” disappears from the vocabulary.
Sample, Inspect, and Ship Without Surprises

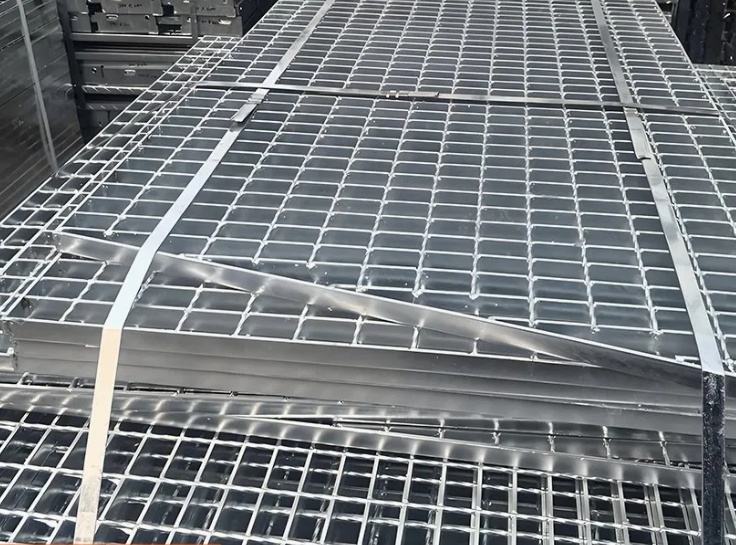

Buyers of Non-Standard Steel Grating are right to distrust promises, so the mature supplier builds verification into the clock instead of after it. A 300×300 mm sample or one stair tread can confirm mesh feel, serration sharpness, banding quality, galvanize color, hole position, and bolt-hole centerlines before the full run eats the steel. Production panels get dimensional re-check after cutting, weld-penetration checks at cross-bar intersections, flatness and banding inspection, coating-thickness mapping, and a load or deflection check on critical platforms. Export packing is its own engineering step: steel-strap bundles, edge protection, desiccant for long sea legs, waterproof wrap, pallet or crate choice based on whether the receiver has a forklift or a crane, and a packing list that matches the panel marks so the site crew can lay the deck without decoding hieroglyphs. A Non-Standard Steel Grating order that arrives with MTC, coating report, inspection record, packing diagram, VGM, and HS 7308.90 paperwork does not just clear customs faster—it clears arguments on site, which is where most hidden delay actually lives.
Optimized Production Scheduling for Fast Turnaround
Once you sign off on the final custom drawing, the production team will prioritize your order in the dedicated custom processing line, skipping the standard bulk production queue that slows down most generic orders. With pre-prepared raw material inventory and streamlined custom cutting, welding and surface treatment processes, most standard custom units of Non-Standard Steel Grating can be fully manufactured and pass all quality checks in 5 to 7 working days, far faster than the multi-week lead time offered by most general grating suppliers.
Pre-Shipment Full Quality Check and On-Time Coordinated Delivery
Before any order leaves the factory, every single custom unit goes through a 100% full inspection process that verifies exact dimensions, weld strength, surface treatment quality and actual load test performance, to make sure no out-of-spec units get packed for shipment. The team will also coordinate directly with your site’s project timeline to arrange the most efficient delivery method, so your Non-Standard Steel Grating arrives exactly when your construction or installation crew is ready to start work, eliminating unnecessary on-site storage time and keeping your full project schedule on track.
This full end-to-end customization and rapid delivery workflow removes almost all the common delays and quality risks that come with ordering custom steel grating, helping you keep your project on schedule and avoid costly on-site rework. If you share your project’s specific dimension requirements, load rating needs and required delivery timeline, our technical team can put together a no-obligation custom design and fast delivery quotation tailored exactly to your project.
