Product Overview

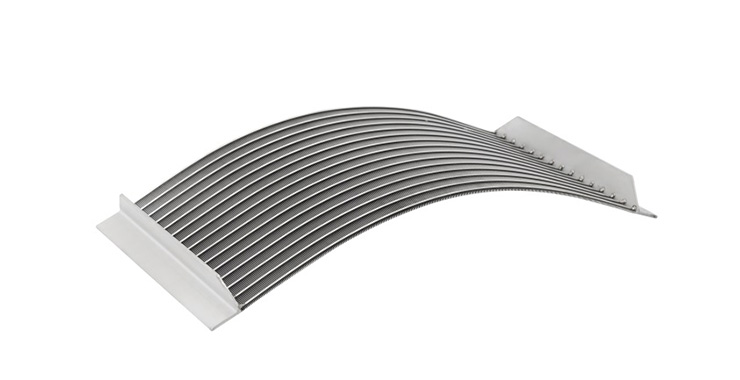

Wedge wire screens are generally made of V-section wires to form slot openings which widen inwardly so that materials tend to pass through the screen. The high open area of wedge wire screen provides excellent permeability properties. Our wedge wire screens can be fabricated with materials that are resistant to corrosion and abrasion, or in combination with polyurethane frame for easy installation while reducing labor intensity and machine downtime. They are suitable for many screening applications in a variety of industries including mining, coal, oil, fertilizer, grain, salt and environmental protection.
Key Features
Temperature
Both the working temperature and
media temperature should be taken
into consideration.
Abrasion Resistance
Consider if the filter media contains
abrasive particles and choose right
material to withstand wear and
erosion over time.
Chemical Compatibility
Determine if there is chemical corrosion and what
type is it to choose the
screen material compatible
with the chemicals.
Strength and Durability
Depending on the application,
choose material with required
mechanical strength to withstand
the loads and stresses it will
encounter during operation.
Cost Considerations
Material costs can vary
significantly, and it's essential
to balance performance
requirements with the available budget.
Technical Specifications
| Nominal Diameter (mm) | 146 | 159 | 219 | 273 | 325 | 377 | 426 | 529 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inside Diameter (mm) | 130 | 140 | 138 | 200 | 198 | 254 | 250 | 246 | 305 | 300 | 297 | 357 | 350 | 346 | 406 | 400 | 398 | 502 | 500 | 498 |
| Wall Thickness (mm) | 5 | 5 | 6 | 5 | 6 | 5 | 6 | 8 | 5 | 6 | 8 | 5 | 6 | 8 | 5 | 6 | 8 | 6 | 7 | 8 |
| OD of Coupling (mm) | 146 | 160 | 162 | 220 | 226 | 274 | 278 | 278 | 325 | 328 | 329 | 377 | 378 | 379 | 426 | 428 | 432 | 529 | 530 | 531 |
Mechanical Property
| Nominal Diameter (mm) | 159 | 219 | 273 | 325 | 377 | 426 | 529 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wall Thickness (mm) | 5 | 6 | 5 | 6 | 5 | 6 | 8 | 5 | 6 | 8 | 5 | 6 | 8 | 5 | 6 | 8 | 6 | 7 | 8 |
| Tensile Strength (KN) | 230 | 270 | 320 | 390 | 400 | 490 | 653 | 480 | 570 | 760 | 560 | 670 | 893 | 630 | 760 | 1048 | 782 | 944 | 1296 |
| Critical Presure Resistant (N/cm²) | 520 | 690 | 340 | 450 | 170 | 230 | 306 | 136 | 203 | 270 | 128 | 183 | 244 | 92 | 135 | 203 | 90 | 136 | 186 |
Need Custom Screening Solutions?
Contact our engineering team today for technical consultation, custom dimensions, and competitive pricing.
