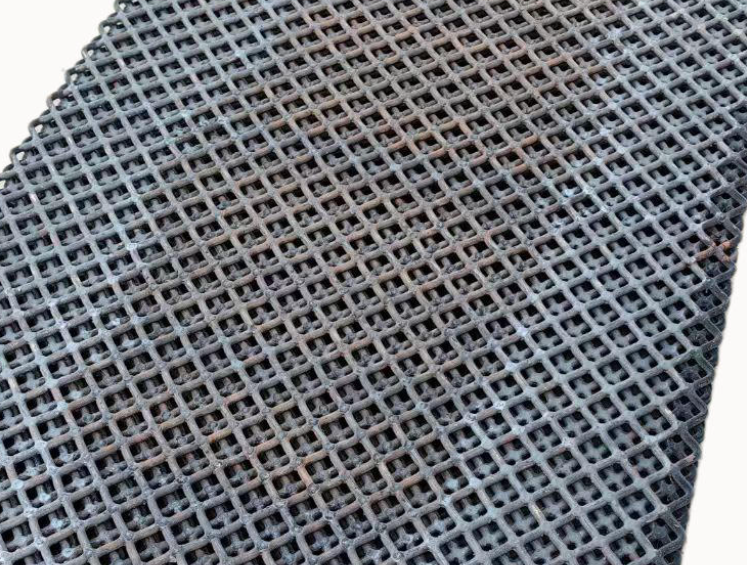

Weld Strength Evaluation & Failure Analysis for Welded Screen Mesh
For aggregate screening, dewatering and industrial filtration operators who’ve dealt with sudden, unplanned welded screen mesh weld breakage that halts full production lines mid-shift, standardized weld strength evaluation and targeted failure analysis cuts unexpected downtime by over 35% and extends average screen service life by 2 to 3 times. Unlike generic visual checks that only catch obvious surface cracks, these structured testing and analysis workflows spot hidden weak points at weld seams before they turn into full breakage, even under constant heavy load and abrasive material impact.
Practical Weld Strength Evaluation Workflows
Proper evaluation for welded screen mesh skips over one-size-fits-all static tests, and instead combines three targeted checks tailored to screen operating conditions: first, a cross-section cut and etch test to confirm full fusion between the screen wire and support rod, no hidden incomplete penetration gaps that cause early breakage. Next, a pull test aligned with ISO 6935-3 industry standards verifies the weld joint strength matches or slightly exceeds the base wire tensile strength, so the screen never breaks at the weld seam before the wire itself reaches its load limit. Finally, a simulated cyclic vibration test mimics real on-site operating loads to catch fatigue weak points that static pull tests would completely miss.

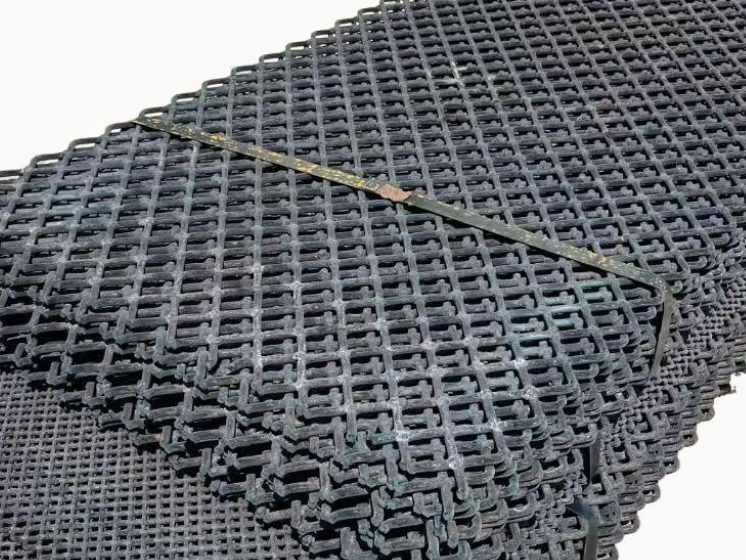

Why the Weld Node Is the Structural Heart of Welded Screens
A woven mesh shares load through tension and crimp; a modular panel shares load through the frame and the mat. A welded screen mesh does something less forgiving — it makes every crossing point a structural connection, so the panel behaves more like a welded space frame than like cloth. That gives welded screens their stiffness, their ability to hold large apertures without sagging, and their usefulness on heavy scalping and coarse dewatering duty, but it also means the whole deck is only as reliable as its weakest nugget. The resistance or projection weld that joins the wires melts a tiny volume of steel, cools it fast, and leaves behind a fusion zone, a heat-affected zone, and a sharp change in stiffness right where the wires meet. Any vibration engineer who has opened a failed deck will tell you the same thing: the wire between nodes often looks fine, while the nodes show shallow fusion, porosity, cracks, or corrosion-assisted retreat. Evaluating welded screens without evaluating the node is like certifying a bridge by testing the road surface.
What a Proper Weld Strength Evaluation Actually Includes
A credible strength evaluation for welded screens goes well past "pull it until something breaks," because static pull tests alone miss the two failure modes that end screen life: fatigue and environmental attack. The first useful check is a cross-section cut and etch of representative nodes, which shows whether fusion is full, whether the weld nugget has the expected diameter and penetration into both wires, and whether there are hidden gaps, cold welds, or incomplete fusion that a surface inspection would never reveal. The second is a single-node shear or cross-tension test on a properly fixtured specimen, with the failure mode recorded — nugget shear, wire tear, or debond — because a high number with the wrong failure mode tells you little about joint quality. The third is a cyclic vibration test that reproduces deck frequency, bed load and impact, since a node can pass a one-time pull and still initiate a fatigue crack after millions of cycles. Standards from the welded steel mesh and resistance welding world, including shear and cross-tension methods for spot/projection welds, give a language for this work, but the acceptance criterion for welded screens should always be field-relevant: the node should fail in the base wire, not at the interface, before the wire itself reaches its load limit.
Reading a Broken Node: Ductile Overload, Brittle Fracture, Fatigue
When a welded screen mesh comes back from the deck with rows of broken intersections, the fracture surface is the confession. A ductile overload fracture usually shows necking, tearing, or the wire itself parting near the weld — that points to impact beyond design, tramp steel, bridging with hydraulic hammering, or a deck that was fed far more than the aperture was meant to pass. A brittle fracture, often with little deformation and a bright granular face, points at a hard heat-affected zone, excessive cooling rate, high-carbon or high-strength wire without proper welding procedure, or residual stress released at the worst possible moment. Fatigue, the most common killer on vibrating equipment, shows as a crack that started at one edge of the node and grew across it under cyclic stress below the static strength — exactly the mechanism that breaks drive beams and side plates on screens operating in the giga-cycle regime. On welded screens the fatigue origin is frequently the weld toe, a micro-crack from fabrication, a corroded notch at the node, or a sharp transition between the stiff welded zone and the flexible wire. Once you learn to read those faces, "random weld breakage" stops being random.
Root Cause Analysis for Weld Breakage Failures
Most accidental breakages of welded screens are mainly due to three common and easily overlooked problems: First, improper welding parameters, such as omitting preheating or incorrect interpass temperature, lead to hidden hydrogen-induced cracks at the weld, which propagate under continuous load; second, mismatch in filler metal strength creates weak points at the joint; and finally, failure to consider residual stress at the weld toe during operation causes the screen to gradually break under repeated impacts. Modern analysis uses localized stress calculation methods to map stress distribution across every weld joint, pinpointing exactly where and how the crack initiated instead of just noting the obvious broken seam.
