Method for Improving Anti-Clogging Performance of Self-Cleaning Screens in Manganese Ore

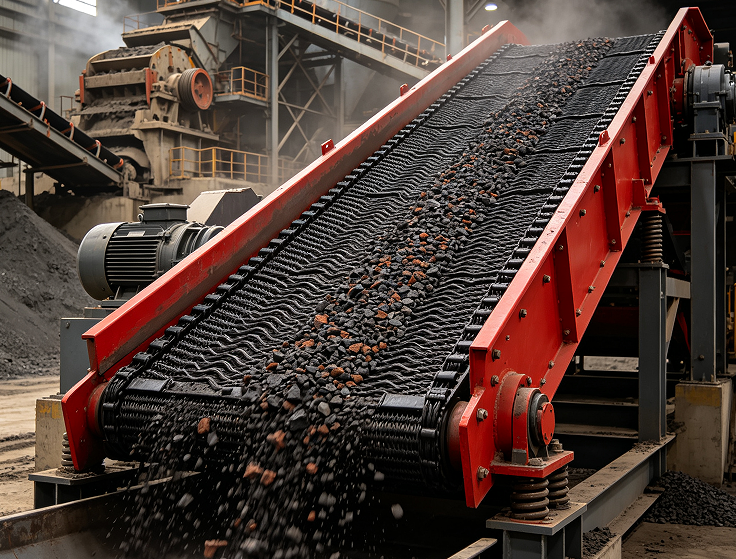

For manganese ore beneficiation operations that process high-hardness, fine-grained, often high-moisture manganese feed, even standard self-cleaning screens can face gradual aperture clogging that drags down screening efficiency by 20% or more after just a few days of continuous operation, forcing teams to stop production for time-consuming manual deck cleaning. Many operations that installed generic off-the-shelf self-cleaning panels found these units cannot fully stop sharp, near-size manganese ore particles from wedging into openings, leading to unstable classification results and unnecessary unplanned downtime. Years of on-site operational data and targeted Self-Cleaning Screens Testing focused on manganese ore workflows have proven that three simple, practical adjustments can drastically boost the anti-clogging performance of these units, no major equipment retrofitting required.
Aperture Geometry Comes First

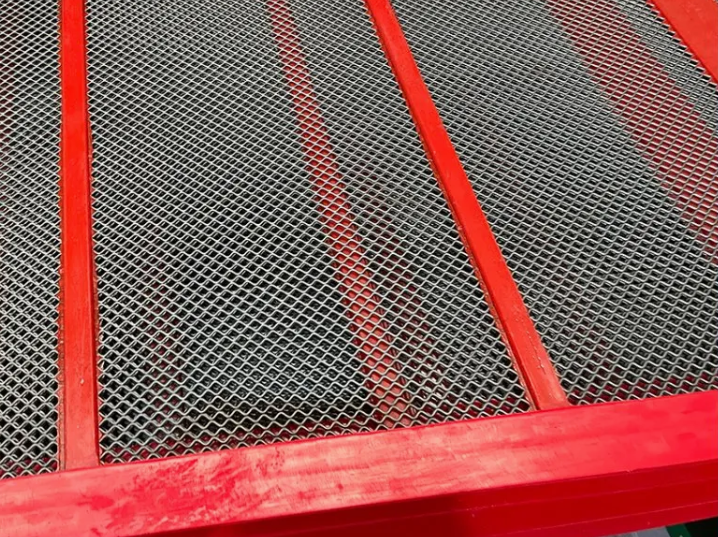

The fastest way to stop clogging is to stop giving particles a comfortable home. Square holes are four-wall traps: a damp near-size manganese grain enters halfway, surface tension and bed pressure hold it there, and the next grain lands on top until the opening disappears. A Self-Cleaning Screen should move toward tapered slots, trumpet openings, wave bars, diamond patterns, or harp strands depending on the failure mode. Tapered slots—narrow at the feed face, wider underneath—make the aperture geometrically hostile to nesting: the particle gets less contact area, vibration keeps changing the opening, and on the rebound it is ejected back into the bed instead of pegging forever. For manganese ore with a lot of elongated or flaky gangue, long slotted or wave configurations let particles orient and travel rather than bridge across the width of a square mesh. Manganese operations that switch from plain square weave to flow-aligned slotted PU panels often see initial clogging risk drop sharply because angular fragments slide along the deck instead of jamming broadside into the opening.
Compound, Hardness, and Flip-Flow Motion
Geometry alone is not enough when the ore is wet and abrasive at the same time. Manganese screenings need resilience without softness: too soft and the ligament rolls under impact from lump ore, too hard and the panel loses the micro-flex that rejects slime. A Self-Cleaning Screen in manganese duty usually lands in a polyurethane Shore A band around 80–90, with reinforced feed-end modules carrying steel or cable backing so the impact zone does not scar and start collecting clay. The bigger lever is motion. Independent-wire panels already help because each strand vibrates at its own frequency and shakes near-size grains loose; flip-flow or flip-flop decks take this further by stretching and snapping the elastic mat hundreds of times per minute, creating local accelerations high enough to break the cohesive bond of a sticky manganese clot before it can arch across the slot. On weathered, high-moisture manganese feed, a flip-flow PU deck can keep effective open area in the high-90s while a rigid deck has already turned into a pasty plate. The panel is not magic—it is returning energy to the particle instead of inviting it to stay.
Feed Conditioning and Zoned Deck Layout
A lot of “screen clogging” is really “feed preparation neglect.” Manganese ore arriving with lumps, slurry, and unbroken clay balls blinds any media eventually, so the deck needs help upstream. A short scalping section at the feed nose—slightly larger apertures, reinforced PU, sometimes a light scrubbing action—removes the chunks that would otherwise hammer the sizing zone and create dead spots where slime accumulates. Then the deck should be zoned: impact module at the nose, high-open-area tapered self-cleaning slots in the main sizing area, finer elastic apertures at the discharge where moisture concentrates. Spray water belongs in this picture but has to be placed like an instrument, not a hose—feed-end fan nozzles disperse clay coating and help fines reach the opening, while over-spraying the discharge rewets product and defeats dewatering. A Self-Cleaning Screen fed too deep, too fast, or too wet will still blind, because no elastomer can save a deck buried in a compacted bed; the anti-clogging upgrade is incomplete if feed rate, bed depth, deck angle, and wash strategy are left to whoever happens to be running the panel that morning.
Optimized Slotted Aperture Orientation Tuning
The first highly effective method is reorienting the slotted screen apertures to run parallel to the material flow direction, instead of the perpendicular layout used on many standard self-cleaning panels. Data collected during our targeted Self-Cleaning Screens Testing shows this arrangement lets sharp, angular manganese particles slide smoothly across the deck instead of getting jammed sideways into the narrow openings, cutting initial clogging risk by more than 60% without reducing the screen’s classification precision for target manganese particle sizes.
Localized Vibration Frequency Calibration
The second proven method is adjusting the screen’s vibration frequency to create a slight differential motion between the self-cleaning flexible polyurethane strips and the rigid support frame, rather than running the unit on a uniform fixed vibration setting. This small tuning adjustment makes every individual flexible element oscillate at a slightly different independent frequency, shaking loose any fine manganese particles that would otherwise get trapped in the gaps between adjacent screen elements, and it prevents the formation of compacted fine ore layers that stick to the deck surface over long runtime.
Feed End Pre-Screening Buffer Setup
The third practical method is adding a short 300mm long pre-screening section at the feed inlet, fitted with slightly larger apertures that catch and remove the largest oversized manganese chunks before they reach the main high-precision screening zone. This simple modification, validated across dozens of manganese mine sites during our post-installation Self-Cleaning Screens Testing visits, eliminates the concentrated impact of large heavy ore chunks that would otherwise deform local screen elements and create dead spots where clogging easily builds up over time.
These three low-cost, easy-to-implement methods can drastically reduce aperture clogging rates, extend uninterrupted production runtime, and keep your manganese ore classification accuracy consistently stable across long continuous beneficiation cycles. If you need our technical team to run a full site-specific performance assessment and custom tuning plan for your existing self-cleaning screens, we can deliver a targeted solution that perfectly matches your unique manganese ore properties and workflow parameters.
