Quarry Screen Media Selection Guide
If you’ve ever stood in a quarry’s maintenance bay at the end of a busy summer shift, staring at a stack of half-used, prematurely worn-out screen panels that failed weeks before their rated service life, you know exactly how much picking the wrong media type can waste your team’s time, blow up your consumable budget and make you miss tight aggregate delivery deadlines. I’ve spent dozens of hours going through old screen changeout logs with quarry operation managers across northern China, and almost every single one of them shared that they used to just grab whatever media was cheapest in stock for every deck, until they ran side-by-side performance tests and realized matching the right media type to each specific deck’s job could cut their total annual screen costs by 40%. This practical, field-tested guide breaks down the most widely used real-world Quarry Screen Media options that quarry teams actually rely on every day, with no overhyped niche products or empty marketing buzzwords, just clear, head-to-head performance insights pulled directly from hundreds of on-site trial records.

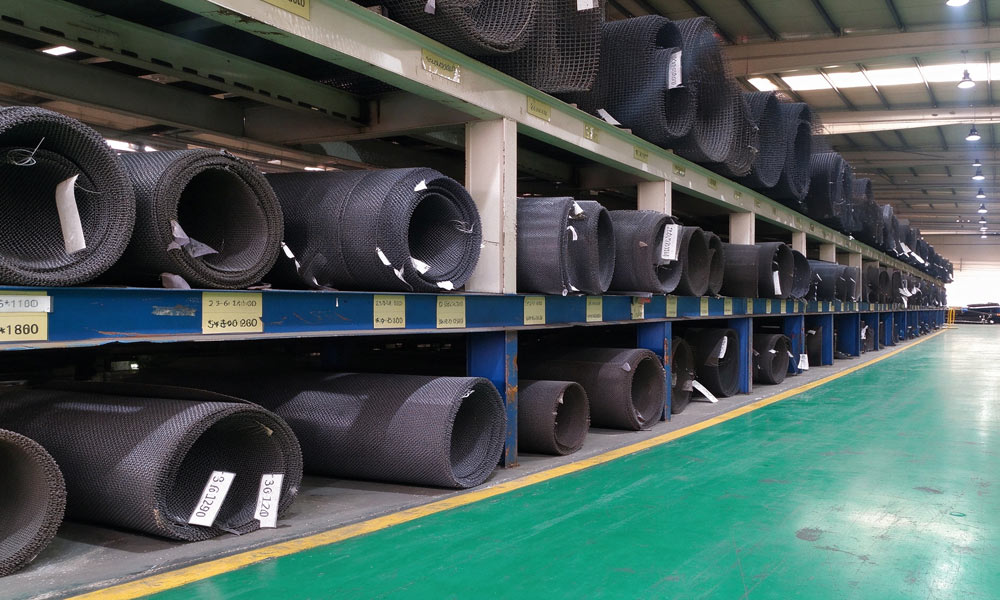

High-Carbon Woven Wire Mesh for High-Throughput Coarse Scalping
The most widely used, cost-effective baseline option that every quarry maintenance team knows well is standard high-carbon woven wire mesh, the most popular Quarry Screen Media for heavy-duty primary and secondary coarse scalping decks processing 20mm to 150mm crushed hard rock and construction aggregate. Made from interlaced high-tensile high-carbon steel wires crimped into a consistent square or rectangular opening pattern, this media has an extremely high open area ratio that lets you push 600+ tons per hour of coarse crushed stone through the deck without restricting flow, while keeping upfront and replacement costs extremely low. The biggest tradeoff here is that it wears faster than rubber or polyurethane panels, and it clogs up quickly when processing damp, sticky near-size fine aggregate, so it works best for dry, well-crushed hard rock scalping applications where maximum throughput and low cost are the top priorities. Most quarries that use this media on their primary scalping decks report 3 to 5 weeks of solid continuous service life, with zero unexpected issues when processing clean, dry run-of-mine crushed stone.
Modular Cast Polyurethane Panels for Mid-Range Fine Aggregate Classification
The most versatile all-around workhorse option that strikes a perfect balance between wear life and screening efficiency is modular cast polyurethane, the fastest growing Quarry Screen Media for 1mm to 25mm mid-range fine aggregate classification decks in modern quarry operations. Molded from high-performance abrasion-resistant polyurethane around a reinforced internal steel frame, this media delivers 3 to 5 times longer service life than standard woven wire, even when processing sharp, abrasive high-silica granite and basalt particles, while still maintaining a much higher open area ratio than solid rubber panels. Its naturally slightly flexible surface also resists blinding far better than steel, because damp sticky near-size aggregate particles can’t wedge themselves permanently into the smooth aperture walls, making it a great fit for quarries that process slightly damp crushed stone during rainy seasons. Most aggregate operations that switch their main fine classification decks over to polyurethane panels report that their fine aggregate product gradation stays far more consistent, and their total annual screen consumable costs drop by more than 40%.
Thick Reinforced Rubber Panels for High-Impact Feed End Zones
The longest-lasting impact-resistant option built for the harshest wear conditions is heavy-duty molded rubber, the most durable Quarry Screen Media for the high-impact first 1 meter of your scalping deck’s feed end where all large falling boulders slam onto the screening surface. Made from thick, reinforced wear-resistant rubber vulcanized around a heavy steel backing plate, this media can absorb repeated heavy impact from 250mm+ sharp falling rock boulders without denting, tearing or wearing through fast, delivering 3 to 6 months of continuous service life even on quarries processing extremely abrasive hard granite. The only real tradeoff is that it has a much lower open area ratio than woven wire or polyurethane, which makes it less ideal for fine sizing below 6mm where maximum open area is critical to hit high throughput targets. Most quarries that install rubber panels on their scalping deck feed end find that their total media replacement frequency drops by 70%, and they almost never have to do emergency feed end panel changes mid-shift during peak construction season.
Tensioned Piano Wire Screens for High-Precision Ultra-Fine Sand Sizing
The highest-efficiency specialized option that unlocks maximum manufactured sand recovery for high-spec concrete aggregate is free-tension piano wire, the highest-throughput Quarry Screen Media for 0.5mm to 6mm ultra-fine manufactured sand sizing where blinding is the biggest operational pain point. The individually tensioned parallel high-carbon wires vibrate independently at an extremely high resonant frequency that shakes loose damp sticky near-size sand particles before they can wedge into the gaps, eliminating almost all blinding even when processing 12%+ moisture fine crushed stone fines. Its ultra-high open area ratio lets you push 30% more fine tonnage through the same deck than a traditional polyurethane panel, while still holding a perfectly consistent cut point to make sure your manufactured sand meets every strict concrete aggregate gradation requirement. Most quarries that add this media to their final fine sizing deck find that their total saleable manufactured sand recovery jumps by 12% to 18%, adding tens of thousands of dollars in extra annual revenue with zero major circuit upgrades.
By comparing these four widely used Quarry Screen Media types and matching the right one to each specific deck’s material characteristics, cut point size and impact load level, you can drastically cut your total annual screen consumable costs, maximize throughput, and almost completely eliminate unplanned mid-shift panel failures during your busiest production seasons.
