Mining Screen Media: A Practical Comparison of Three types Screening Panels
If you’ve ever stood in a mineral processing plant’s sizing bay mid-week, staring at a stack of half-used screen panels that wore out way earlier than expected, you know how much picking the wrong screen type can waste your team’s time, budget and production throughput. I’ve spent hours going through old consumable logs with mineral processing maintenance leads across copper, iron ore and lithium mine sites, and more often than not, they were using the exact same panel type across every single deck in their circuit, even when the material, cut point and wear conditions were completely different. This practical, field-tested guide breaks down the most widely used, real-world proven Mining Screen Media options that operations teams actually rely on day to day, no overhyped niche products or empty marketing buzzwords, just clear insights refined across hundreds of on-site panel performance tests.

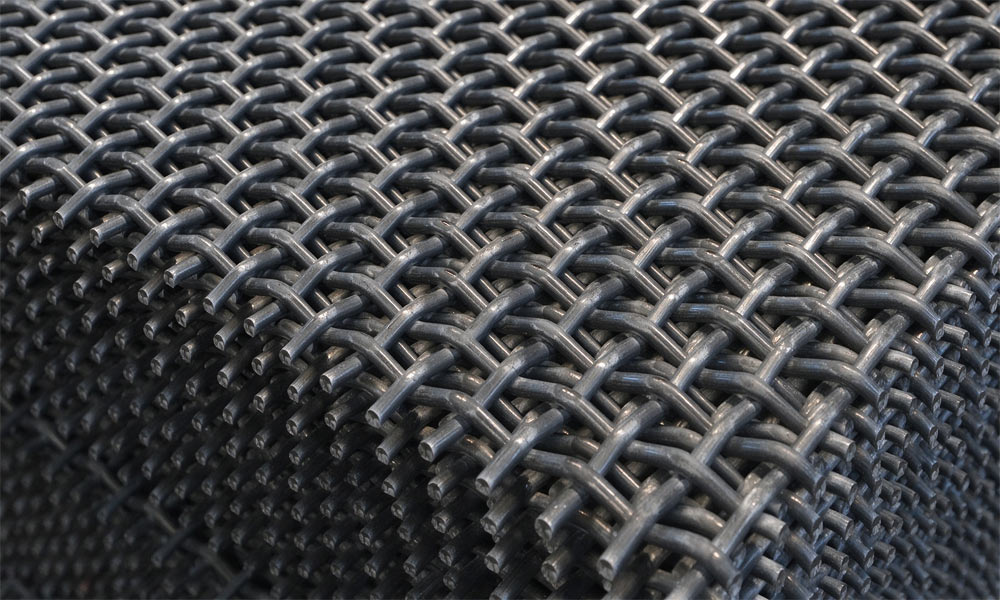

High-Carbon Woven Wire Mesh for High-Throughput Coarse Scalping
The most widely used, cost-effective baseline option that every mine maintenance team knows well is standard high-carbon woven wire mesh, the most popular Mining Screen Media for heavy-duty primary and secondary coarse scalping decks processing 20mm to 150mm crushed hard rock. Made from interlaced high-tensile high-carbon steel wires crimped into a consistent square or rectangular opening pattern, this media has an extremely high open area ratio that lets you push 500+ tons per hour of coarse crushed ore through the deck without restricting flow, while keeping upfront and replacement costs extremely low. The biggest tradeoff here is that it wears faster than rubber or polyurethane panels, and it clogs up quickly when processing damp, sticky near-size fine material, so it works best for dry, well-crushed hard rock scalping applications where maximum throughput and low cost are the top priorities. Most mine sites that use this media on their primary scalping decks report 4 to 6 weeks of solid continuous service life, with zero unexpected issues when processing clean, dry run-of-mine ore.
Modular Cast Polyurethane Panels for Mid-Range Fine Ore Classification
The most versatile all-around workhorse option that strikes a perfect balance between wear life and screening efficiency is modular cast polyurethane, the fastest growing Mining Screen Media for 1mm to 25mm mid-range fine ore classification decks in modern mineral processing plants. Molded from high-performance abrasion-resistant polyurethane around a reinforced internal steel frame, this media delivers 3 to 5 times longer service life than standard woven wire, even when processing sharp, abrasive high-silica ore particles, while still maintaining a much higher open area ratio than solid rubber panels. Its naturally slightly flexible surface also resists blinding far better than steel, because damp sticky near-size ore particles can’t wedge themselves permanently into the smooth aperture walls, making it a great fit for sites that process slightly damp ore during rainy seasons. Most mineral processing operations that switch their main fine classification decks over to polyurethane panels report that their fine ore product gradation stays far more consistent, and their total annual screen consumable costs drop by more than 40%.
Thick Reinforced Rubber Panels for High-Impact Feed End Zones
The longest-lasting impact-resistant option built for the harshest wear conditions is heavy-duty molded rubber, the most durable Mining Screen Media for the high-impact first 1 meter of your scalping deck’s feed end where all large falling boulders slam onto the screening surface. Made from thick, reinforced wear-resistant rubber vulcanized around a heavy steel backing plate, this media can absorb repeated heavy impact from 200mm+ sharp falling ore boulders without denting, tearing or wearing through fast, delivering 3 to 6 months of continuous service life even on sites processing extremely abrasive hard rock. The only real tradeoff is that it has a much lower open area ratio than woven wire or polyurethane, which makes it less ideal for fine sizing below 6mm where maximum open area is critical to hit high throughput targets. Most mine sites that install rubber panels on their scalping deck feed end find that their total media replacement frequency drops by 70%, and they almost never have to do emergency feed end panel changes mid-shift.
Tensioned Piano Wire Screens for High-Precision Ultra-Fine Ore Sizing
The highest-efficiency specialized option that unlocks maximum fine ore recovery for tight-specification downstream processes is free-tension piano wire, the highest-throughput Mining Screen Media for 0.5mm to 6mm ultra-fine ore sizing where blinding is the biggest operational pain point. The individually tensioned parallel high-carbon wires vibrate independently at an extremely high resonant frequency that shakes loose damp sticky near-size particles before they can wedge into the gaps, eliminating almost all blinding even when processing 12%+ moisture fine ore slurry. Its ultra-high open area ratio lets you push 30% more fine tonnage through the same deck than a traditional polyurethane panel, while still holding a perfectly consistent cut point to make sure your fine ore feed meets every strict downstream flotation or leach gradation requirement. Most mineral processing plants that add this media to their final fine sizing deck find that their total saleable fine ore recovery jumps by 12% to 18%, adding tens of thousands of dollars in extra annual revenue with zero major circuit upgrades.
By matching the right type of Mining Screen Media to each specific deck’s material characteristics, cut point size and impact load level, instead of using the same media across every single deck in your plant, you can drastically cut your total annual screen consumable costs, maximize throughput, and almost completely eliminate unplanned mid-shift panel failures.
