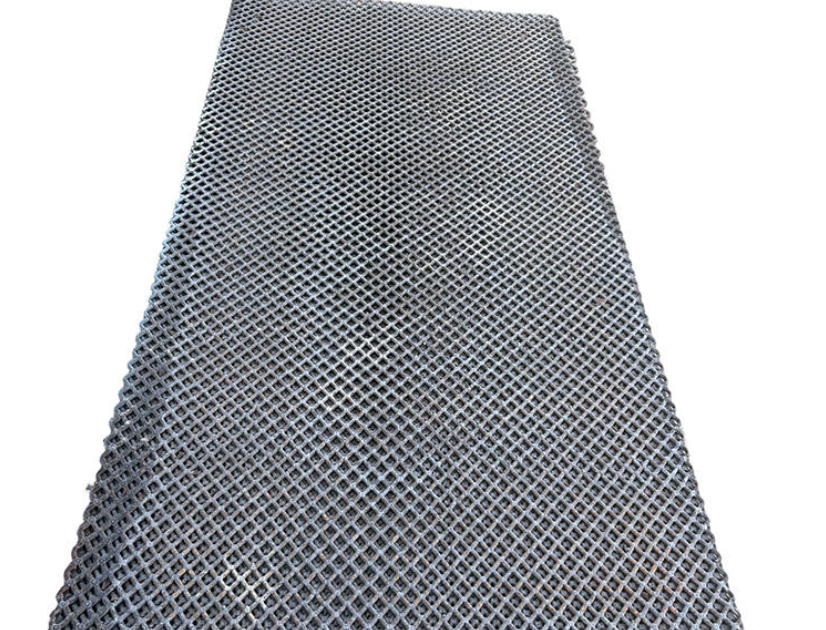

Analysis of Structural Advantages and Impact Resistance of High-Strength Welded Mining Screens

Conventional woven screens often fail to withstand the direct impact of large ore chunks, quickly suffering from loose wires and localized tearing; consequently, downtime for screen replacement can exceed actual operating time. High-strength welded screens fundamentally resolve the conflict between impact resistance and wear resistance, significantly extending service life for many mining operations that have made the switch.

Fully Penetrated, Unitary Welded Structure with Zero-Looseness Joints

Unlike traditional woven screens that rely on the mutual compression of wires for stability, every support bar and screen wire in these high-strength welded screens is joined via full-penetration CNC resistance welding, leaving no gaps for sliding or loosening. Even when large chunks of iron ore strike the screen surface directly, the wires do not shift or curl at the edges. This structural design offers several times the tear resistance of woven screens, eliminating the risk of localized wire breakage or detachment that could damage equipment.

V-Shaped Wire Profile to Minimize Blinding

High-strength welded screen feature a V-shaped cross-section: the top surface contacting the ore is narrow, while the profile widens downward. This configuration maintains sufficient thickness for impact resistance while creating an inverted-trapezoid aperture，narrow at the top, wide at the bottom. This design not only disperses impact stress from large materials—preventing wire deformation—but also fundamentally reduces the likelihood of fine particles becoming lodged in the openings, thereby lowering the blinding rate and boosting screening efficiency.

Customized Pre-Tensioning for Maximum Impact Resistance

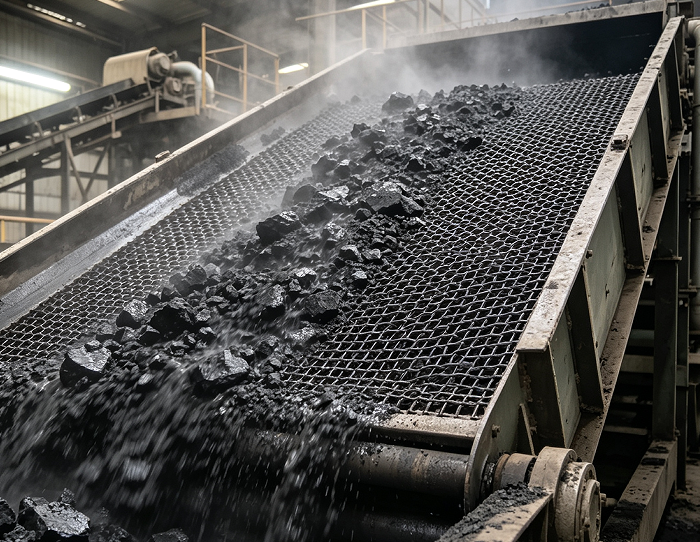

To accommodate the specific impact forces associated with different ore types, these High-Strength Welded screens undergo pre-tensioning before leaving the factory. This ensures uniform stress distribution across the entire surface, eliminating weak points caused by localized stress concentration. Field data from gold mine coarse-screening operations shows the screen can withstand repeated impacts from 100kg-class ore chunks; after six months of continuous operation, the screen surface shows no signs of deformation or weld failure, with impact resistance far exceeding industry standards for conventional screens.

High-strength welded mining screens offer structural advantages and superior impact resistance, featuring optimizations in connection methods, cross-sectional design, and stress management that make them perfectly suited for the high-impact, high-abrasion conditions of coarse screening operations in mines. If you are experiencing consistently low screening efficiency, you might consider trying these high-strength welded screens.
