Product Overview

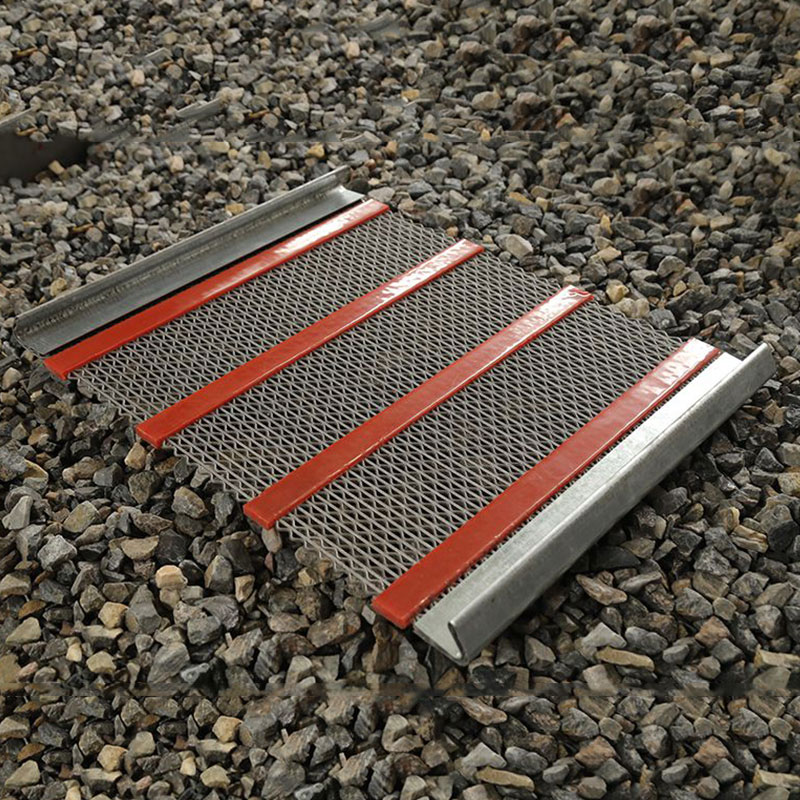

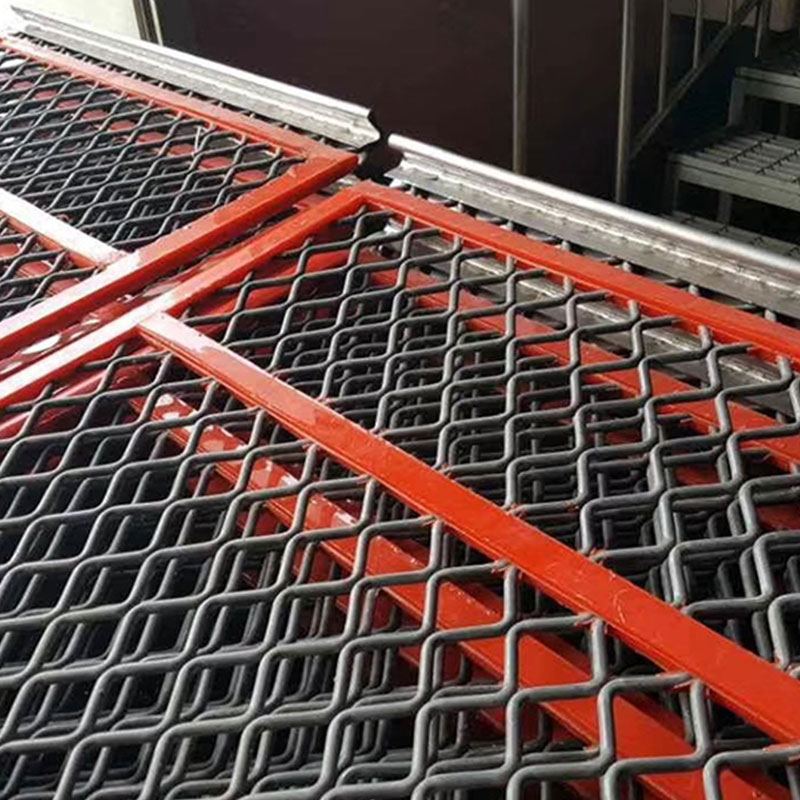

This self-cleaning diamond aperture screen is fitted with firmly fixed polyurethane strips. The unique diamond-shaped hole structure provides reliable anti-clogging self-cleaning performance to avoid material blinding and pegging. Combined with wear-resistant polyurethane strips, the screen panel achieves excellent shock absorption, noise reduction and extended service life. It maintains stable screening capacity under heavy loads, reduces frequent maintenance downtime, and is widely used in aggregate crushing, mineral processing and construction waste recycling.
Key Features
Zero Screen Blinding
Unique diamond aperture geometry prevents material pegging and blocking, preserving effective open area continuously.
Automatic Self-Cleaning
Vibration-driven self-cleaning performance works continuously without manual screen clearing operations.
Stable High Throughput
Sustained screening efficiency when processing sticky, wet and high-moisture bulk raw materials.
Firm Fixed PU Strips
Securely mounted polyurethane strips provide cushioning, reduce impact force and suppress operation noise.
Excellent Wear Resistance
High-performance polyurethane material resists abrasion from ores, aggregates and construction materials.
Longer Service Life
Diamond screen panel combined with shock-absorbing PU strips lowers fatigue damage and extends service cycle.
Technical Specifications
Mesh Size & Technical Data
Aperture Range2 mm - 60 mm
Diamond Opening TypeCustom diamond aperture layout
Screen MaterialHigh Carbon Steel / Spring Steel / Stainless Steel
PU StripFixed integrated polyurethane buffer strips
Panel WidthUp to 2,500 mm
Panel LengthCustomized according to vibrating screen
Mounting EdgeHook Edge, Flat Bar, Bolt-Down Type
Key Advantages
- Diamond aperture design delivers continuous self-cleaning, prevents blinding and pegging
- Firmly fixed polyurethane strips absorb impact and lower running noise
- Stable screening efficiency with consistent throughput for sticky, moist materials
- Reduced maintenance frequency and unplanned production downtime
- Cushioning PU strips slow abrasion, extending overall screen service life
- Outperforms traditional woven screens under heavy-duty screening conditions
Applications
- Mining & mineral processing
- Quarry aggregate crushing & grading
- Coal washing and coal screening
- Sand & gravel classification
- Asphalt mixing station raw material screening
- Construction waste and material recycling
Screen Weaving Method
Type 1 - Basic Diamond Aperture
Type 2 - Heavy-Duty Diamond Aperture
Type 3 - Ultra-Fine Diamond Aperture
Type 4 - Wide Diamond Aperture
Type 5 - Narrow Diamond Aperture
Type A - Piano Wire Diamond Screen
Type B - Stainless Steel Diamond Screen
Hook Styles
Type 1 - Standard Diamond Aperture with Fixed PU Strips
Type 2 - Reinforced Diamond Aperture with PU Support Strips
Type 3 - Ultra-Wear PU Strip Diamond Screen
Type 4 - Piano Wire Diamond Screen with Fixed PU Strips
Type 5 - Removable PU Strip Diamond Screen
Type A - High Tensile Diamond Aperture Screen
Type B - Anti-Corrosion Diamond Aperture Screen
Screen Tensioning Hook Style
Type 1 - Standard Hook
Type 2 - Heavy-Duty Hook
Type 3 - Quick-Install Hook
Type 4 - Anti-Slip Hook
Type 5 - Extended Hook
Type 6 - Curved Hook
Type 7 - Reinforced Hook
Type 8 - Low-Profile Hook
Type 9 - Custom Hook
Screen Tensioning Hook Direction
Both Hooks Down (Standard)
Both Hooks Up (Heavy-Load)
Mixed Direction (Custom Install)
